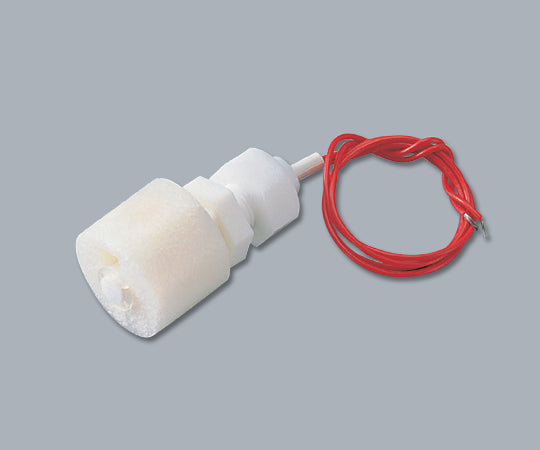

A reed switch is enclosed inside and the switch is operated by the magnetic force of the magnet inside the float.
If the float is set in reverse, the rising will be ON (reversible). Type: Side mounting (one point detection, reversible)
Material: PP (polypropylene)
Contact capacity: 50W DC/AC
Contact resistance: 150mΩ
Dielectric strength between contacts: 500V DC
Maximum switching voltage: 300V DC/AC
Maximum switching current: 0.5A DC/AC
Insulation resistance: 100MΩ
