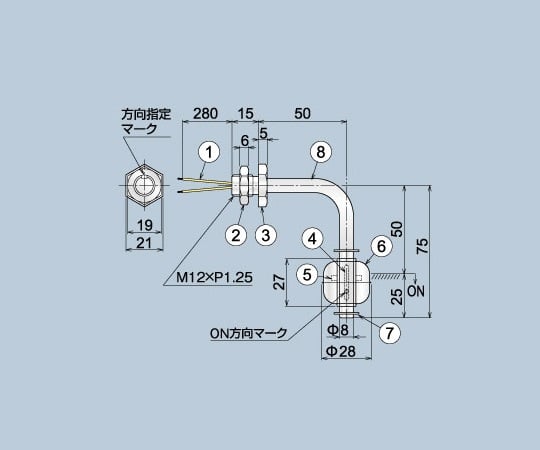

Float type level switch, side mounting, KS4-A, 1 piece

The contacts are highly reliable and have a long life of over 1 million operations (200V, 50VAmax, coil drive). If the float is set in reverse, it will be turned OFF when the temperature rises (reversible). Type: Side mounting (ON when the temperature rises, 1 point detection) Maximum operating voltage: AC300V DC300V Maximum switching capacity: 50VA 50W (coil load 8VA) Maximum switching current: 0.5A Dielectric strength between contacts: DC400V (1 minute) Contact resistance: 100mΩ or less (initial value) Insulation resistance: 100MΩ or more (500VDC, between lead and body) Dielectric strength: AC2,000V for 1 second (between lead and body) Material: Stainless steel Usable temperature: 100℃ *A separate control unit is required for control.
