ブルマン(株)

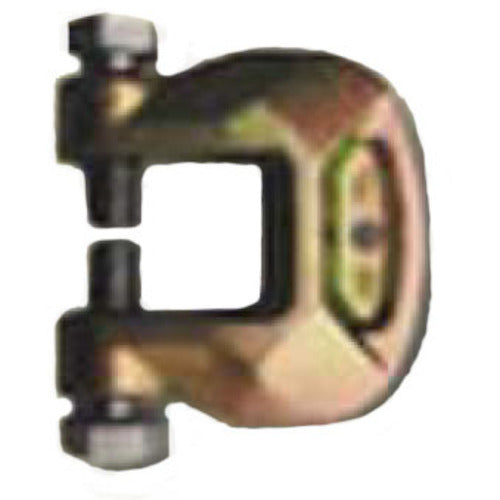

Bullman Narrow Fastener Cs-28 Type CS-28 1 pc
Bullman Narrow Fastener Cs-28 Type CS-28 1 pc
Regular price
¥3,276
Regular price
Sale price
¥3,276
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

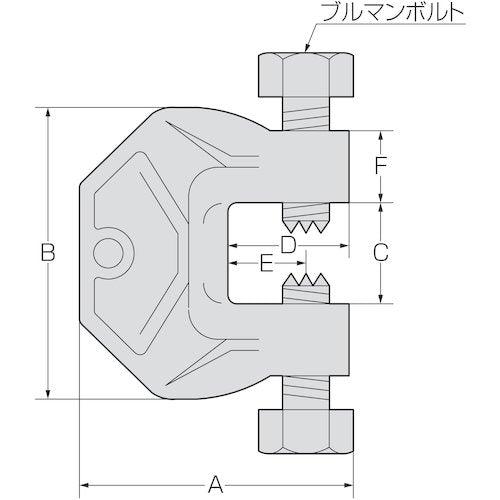

Catalog number: CS-28 Features: ● Reduces work time: No special skills are required, making it easy. ● Machinery can be reduced regardless of weather conditions. ● No fire or electricity required: No fire or electricity is used. ● Can be safely installed in places where open flames are prohibited. ● Steel can be recovered as is: No drilling is required, no repairs are required, and recycling is easy. Applications: ● For joining two layers of overlapping steel. ● For various temporary work at construction and civil engineering sites. Specifications: ● Clamping range (mm): 13-26 ● Bolt: M12 x 35 ● B (mm): 76 ● Long-term load (t): 1 ● Load (kN): 9.8 ● Ratchet: 19 ● A (mm): 74 ● C (mm): 28 ● D (mm): 39 ● E (mm): 28 ● F (mm): 18 ● Thickness (mm): 24 Material/Finish: ● Body: S45C (forged) ● Surface treatment: Electrogalvanized
