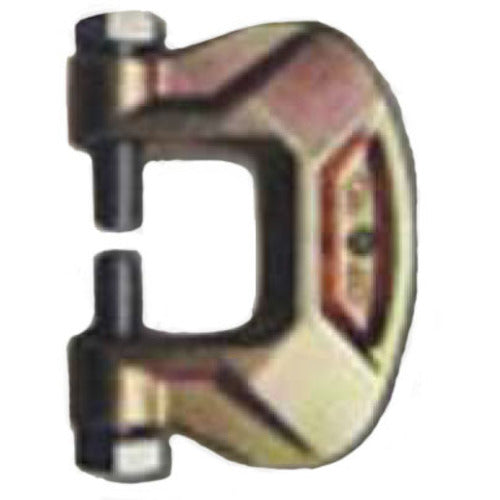

Bullman Narrow Fastener Cs-40 Type CS-40 1 pc

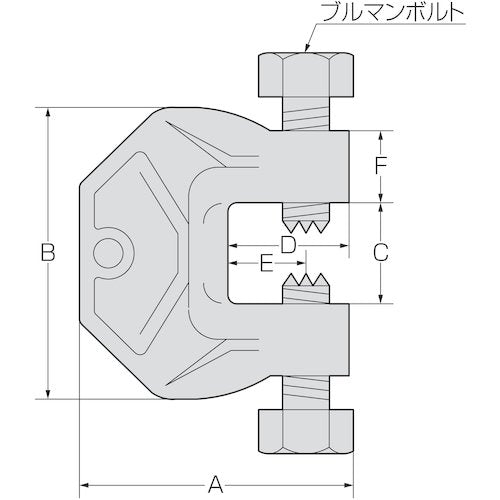

Catalogue number: CS-40 Features: ● Reduces work time: No special skills are required, making it easy. ● Machinery can be reduced regardless of weather conditions. ● No need for fire or electricity: No fire or electricity is used. ● Can be safely installed in places where open flames are strictly prohibited. ● Steel can be recovered as is: No drilling is required, so steel does not need repair, and recycling is easy. Applications: ● For joining two layers of overlapping steel. ● For various temporary construction work at construction and civil engineering sites. Specifications: ●Clamping range (mm): 15-38 ●Bolt: M12 x 40 ●B (mm): 100 ●Long-term load (t): 1 ●Load (kN): 9.8 ●Ratchet: 19 ●A (mm): 77 ●C (mm): 40 ●D (mm): 42 ●E (mm): 31 ●F (mm): 21 ●Thickness (mm): 24 Material/Finish: ●Body: S45C (forged) ●Surface treatment: electrolytic galvanization
