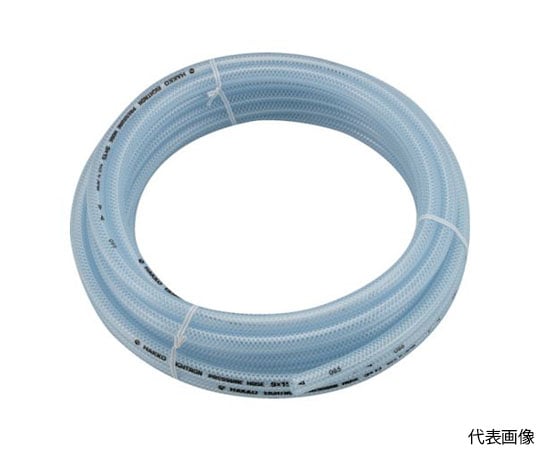

Braided hose 15X22mm 10m TB-1522-10 1 roll

It has excellent pressure resistance, elasticity, resilience and bending strength. Fractional lengths are available upon request with a part number (please change the last digit of the part number to the desired length). Industrial air and water piping for machine tools, molding machines, factory equipment, etc. Length (m): 10 Inner diameter (mm): 15 Outer diameter (mm): 22 Operating pressure (MPa): 1.0 Allowable bending radius (mm or more): 105 Operating temperature range (℃): 0 to 60 Minimum bending radius (mm): 105 Color: Clear Material/Finish: Soft polyvinyl chloride resin (PVC) + polyester thread Caution: Do not use the product in locations where the metal fittings may be subjected to shock or get caught on something (such as uneven flooring or seams in checkered steel plates). This may result in an unexpected accident, such as the metal fittings flying off. Caution: When separating fittings, hold the fittings by hand. Note: After connecting the connectors, gently pull them from both sides to make sure they do not come loose. Caution: Use only couplings designed for bladed hoses. Using other couplings may damage the hose. Country of Origin: Japan Code number: 228-2542
