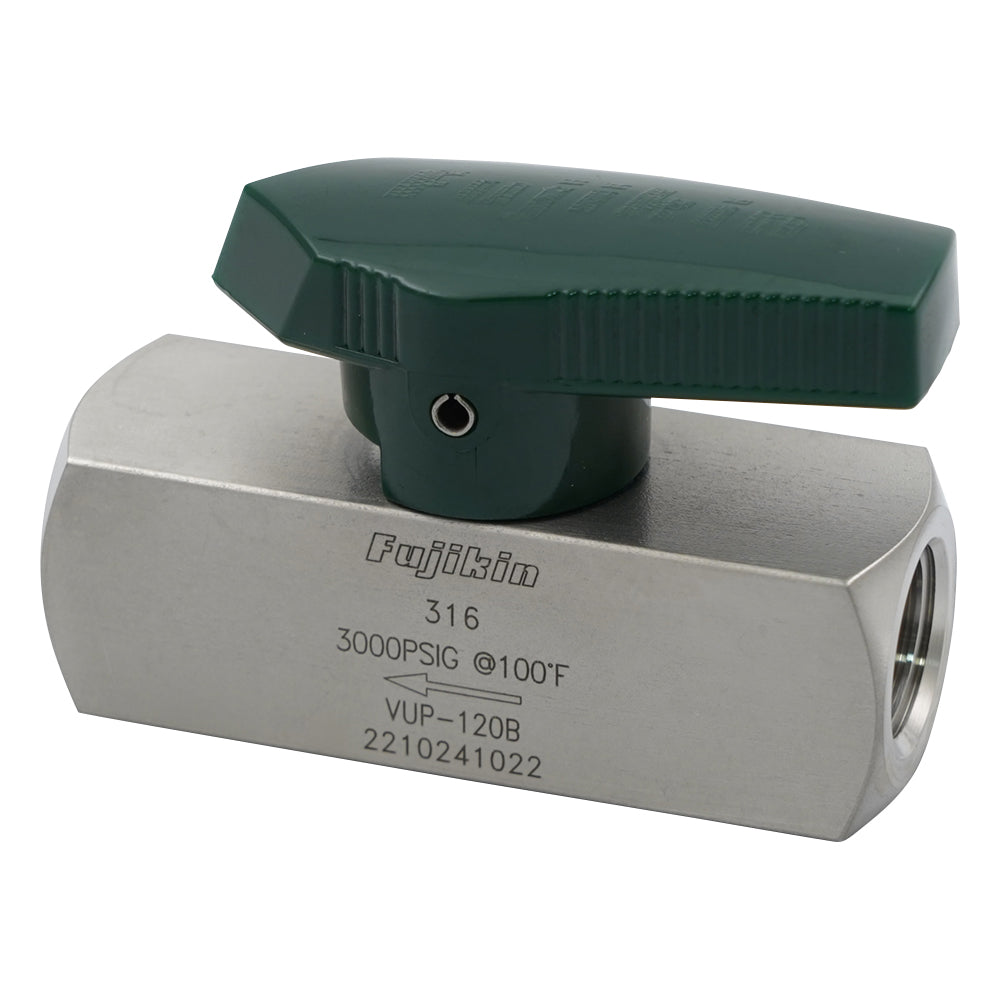

Compared to ball valves, it is compact and has a wide temperature and pressure range. Nominal diameter: Rc1/4
Orifice diameter (mm): 4.4
Size (mm): 56.1 x 19.1 x 39.1
Maximum operating pressure: 20.6MPa
Operating temperature range: -23 to +204°C
O-ring material: Fluorine rubber (FKM)
