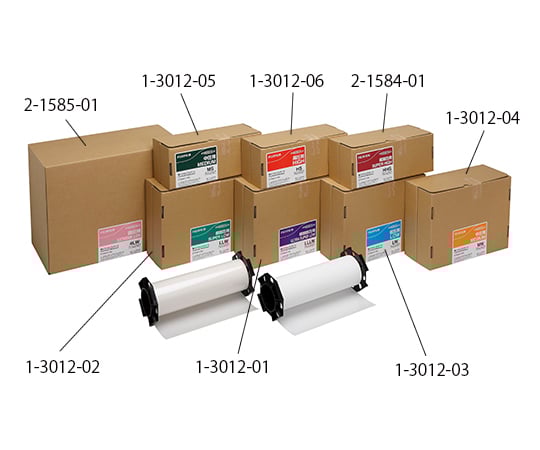

Prescale (pressure measurement film) for ultra-low pressure LLLW 1 sheet

It is possible to measure the clamping pressure of the fastening parts, the contact pressure of the rolls, etc. The pressure distribution across the entire measurement surface can be determined at a glance. Measurement range (MPa): 0.20 to 0.6 Type: Two-sheet type Accuracy: ±10% or less (measured by a concentration meter) Width x length: 270mm x 4m How to use: Cut the press scale into the required shape, align film A and film C, and clamp it over the area to be measured and apply pressure to change color. RoHS2 (EU)2015/863 compliant [About RoHS]
