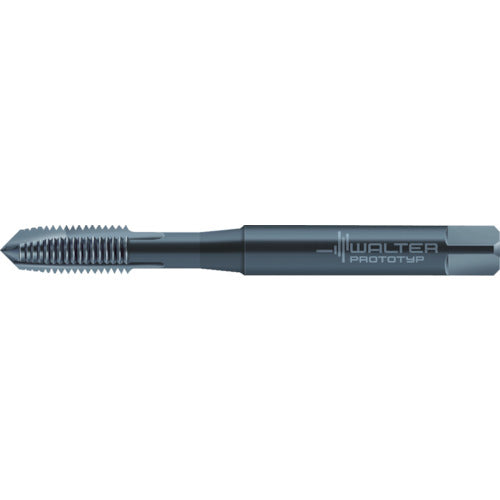

Prototip Point Tap Prototex INOX for Metric Threads M10 Φ7.0 JC20263-M10 1 piece

Catalog number: JC20263-M10 Features: ● Suitable for high-precision through-thread machining up to a thread depth of 3 × D. ● Suitable for long-chip workpieces of 350 to 1200 N/mm2 and up to 36 HRC. Applications: ● For through-hole machining. ● Workpiece: Stainless steel and high alloy steel. Specifications: ● Precision: 6HX ● Nominal size: M10 ● Pitch (mm): 1.50 ● Thread length (mm): 20 ● Total length (mm): 75 ● Shank diameter (mm): 7.0 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 8.5 ● Number of engagement threads: 3.5 to 5 threads ● Machining thread: Metric thread ● Surface treatment: Homo treatment Material/Finish: ● High-speed steel (HSS-E)
