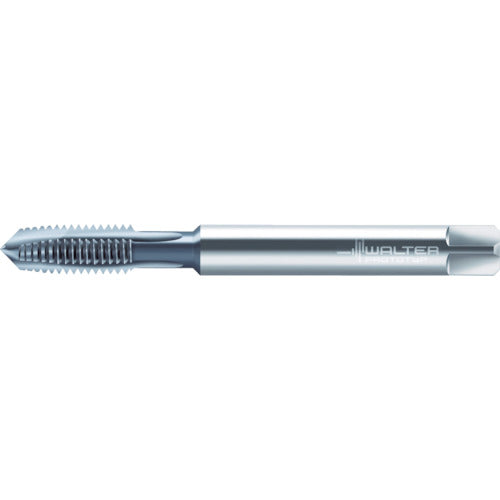

Prototip Point Tap Prototex TINI for Metric Threads TICN Coating M8 Φ6.2 JC2026616-M8 1 Piece

Catalog number: JC2026616-M8 Features: ● Suitable for high-precision through thread machining up to a thread depth of 2 x D. ● Suitable for long chip workpieces 700 to 1400 N/mm2 and up to 44 HRC. Applications: ● For through hole machining. ● Workpiece: titanium, nickel alloys and similar workpieces. Specifications: ● Precision: 6HX ● Nominal size: M8 ● Pitch (mm): 1.25 ● Thread length (mm): 18 ● Total length (mm): 70 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 5.0 ● Pilot hole diameter (mm): 6.75 ● Number of engagement threads: 3.5 to 5 threads ● Machining thread: Metric thread ● Surface treatment: TiCN coating Material/Finish: ● Powdered high speed steel (HSS-E-PM)
