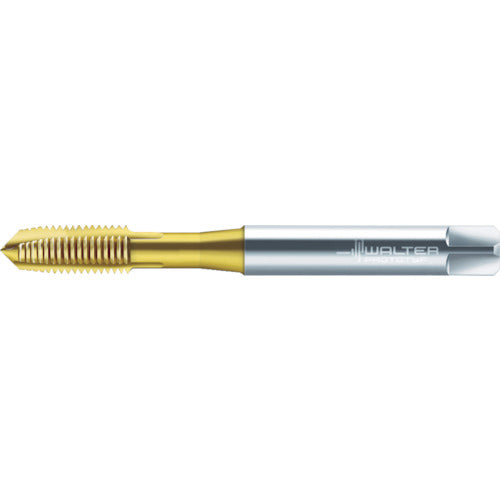

Prototip H Point Tap (TIN Coated) JC2036005-M16 1 piece

Catalog number: JC2036005-M16 Features: ● Suitable for high-precision through thread machining up to a thread depth of 3 x D. ● Suitable for long chip workpieces of 200 to 1000 N/mm2 and up to 32 HRC. Applications: ● For through hole machining. ● Workpiece: steel, aluminum and nodular cast iron. Specifications: ● Precision: 6H ● Nominal size: M16 ● Pitch (mm): 2.00 ● Thread length (mm): 25 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10.0 ● Pilot hole diameter (mm): 14.0 ● Number of engagement threads: 3.5 to 5 threads ● Machining thread: Metric thread ● Surface treatment: TiN coating Material/Finish: ● High speed steel (HSS-E)
