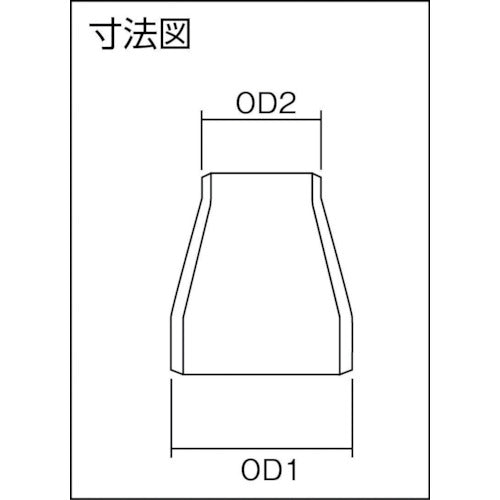

Catalog number: RC-SGP-100A-65A Features: ● General-purpose black pipe type fitting. Applications: ● Petrochemical related. ● General building construction piping. Specifications: ● Nominal diameter A: 100 x 65 ● Nominal diameter B: 4 x 2 1/2 ● Shape: Concentric reducer ● Wall thickness t1 x t2 (mm): 4.5 x 4.2 ● Outside diameter (mm) OD1 x OD2: 114.3 x 76.3 ● Outside diameter OD1 x OD2 (mm): 114.3 x 76.3 ● H (mm): 101.6 ● JIS B2311 standard product Material/Finish: ● Carbon steel for piping (SGP)
