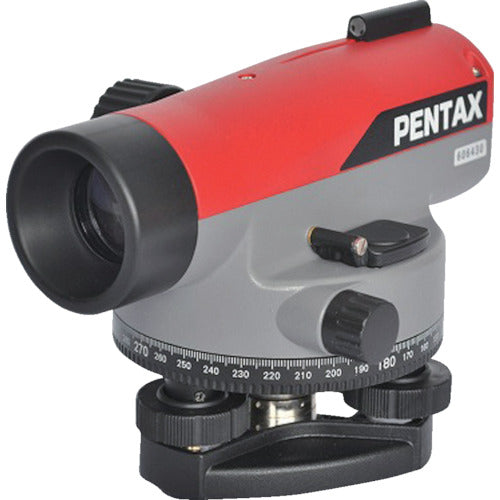

Catalogue number: AP-230 Features: ● Equipped with a magnetic automatic correction device that maintains stable high accuracy. ● The minimum collimation is 30 cm, which allows for accurate focus even at close ranges. ● A cost-effective model that achieves high accuracy and rigidity. Specifications: ● Magnification (times): 30 ● Minimum focusing distance (m): 0.3 ● Correction range ('): ±15 ● Bubble sensitivity (mm): 8'/2 ● 1 km round trip standard deviation (mm): ±1.5 ● Minimum reading value of horizontal scale plate: 1° ● Image: Positive image ● Protection class: IP55 ● Magnification: 30x ● Protection class: IP55 ● JSIMA (Japan Surveying Instrument Manufacturers Association) inspection certificate can be issued (fee required) ● Compatible tripod: TS-70, TE-6 ● Horizontal degree, index reading Note: ● Tripod sold separately
