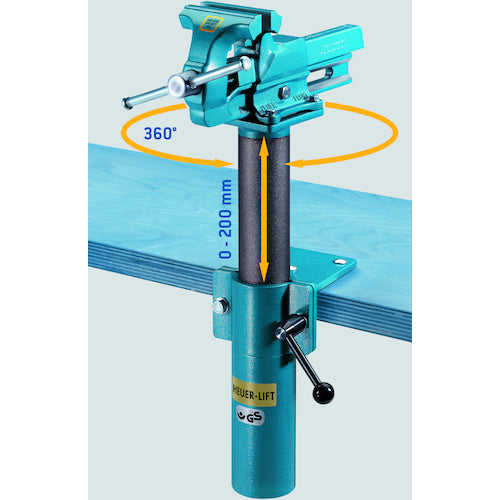

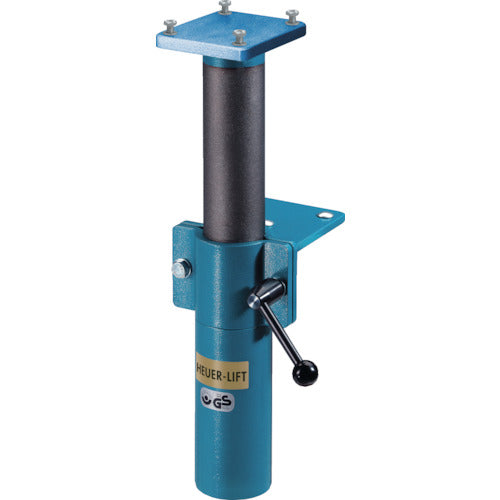

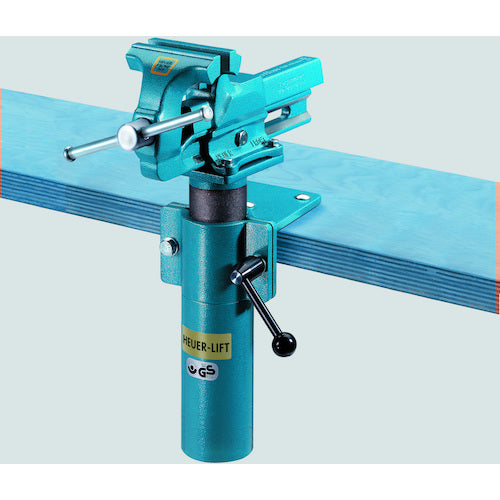

Catalog number: 104200 Features: ●Lift with rotation function for HEUER vices. ●Ergonomic design allows you to adjust the height and fix it in place to suit various tasks. ●With the vice body attached, the height can be easily adjusted from 0mm to 200mm and can be rotated 360°. Specifications: ●Total length (mm): 270 ●Width (mm): 152 ●Height (mm): 339 ●Mounting dimensions (mm) G: 70 ●Mounting dimensions (mm) H: 94 ●Mounting hole dimensions (mm): 13 ●Compatible lead vices: 100100 ●Allowable load (kg): 4-10 ●Height adjustment: 0-200mm Material/Finish: ●Forged steel Set contents/Accessories: ●Screws for fixing the vice *Screws for attaching to a workbench, etc. are not included. Caution: ●Do not adjust the height while the workpiece is clamped.
