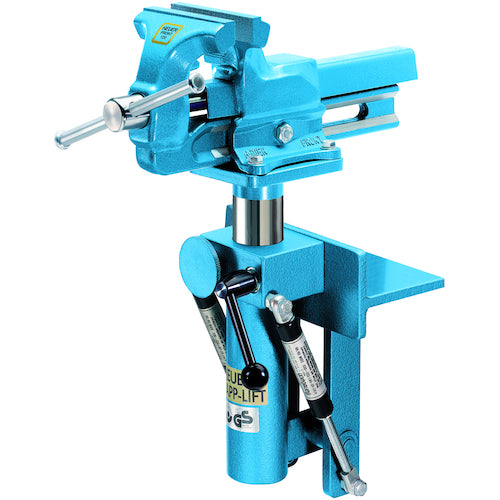

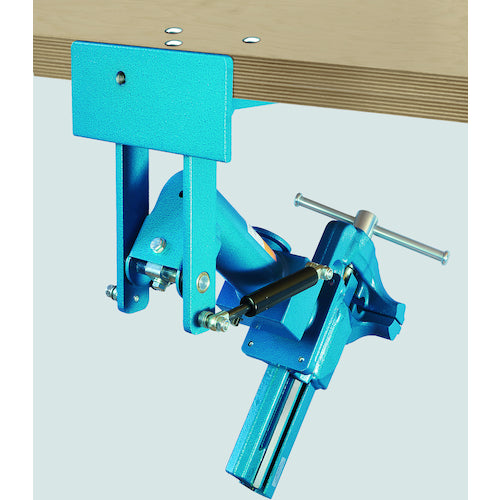

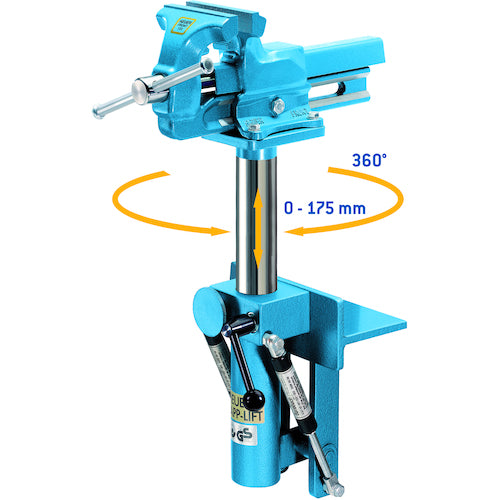

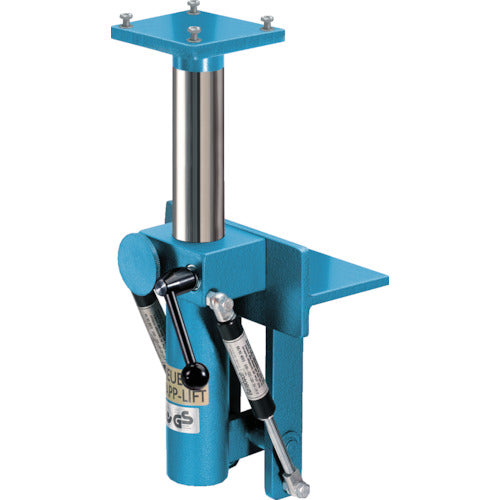

Catalog number: 106120 Features: * Folding and rotating lift for HEUER vices. * Ergonomically designed, the height can be adjusted to suit a variety of tasks and fixed in place. * With the vice body attached, the height can be easily adjusted from 0mm to 175mm and it can rotate 360°. * When not in use, it can be folded and stored under the desk. Specifications: ●Total length (mm): 300 ●Width (mm): 200 ●Height (mm): 300 ●Mounting dimension E (mm): 170 ●Mounting dimension G (mm): 85 ●Mounting dimension F (mm): 85 ●Mounting dimension H (mm): 170 ●Mounting hole dimension (mm): 13 ●Compatible lead vice: 100120 ●Permissible load (kg): 4-10 ●Mounting plate thickness: 50mm ●Height adjustment: 0-175mm Material/Finish: ●Forged steel Set contents/Accessories: ●Screws for fixing the vice *Screws for attaching to a workbench etc. are not included. Caution: ●Do not rotate or adjust the height while the workpiece is clamped.
