イマオコーポレーション
Hole clamper QCHC0612N-6-SUS 1 piece
Hole clamper QCHC0612N-6-SUS 1 piece
Regular price
¥7,370
Regular price
Sale price
¥7,370
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It can be used with simple processing that only requires drilling holes in the base.
Holder replacement. Clamping force (N): 3
Suitable plate thickness (mm): 3 to 8
Suitable base thickness (mm): 6

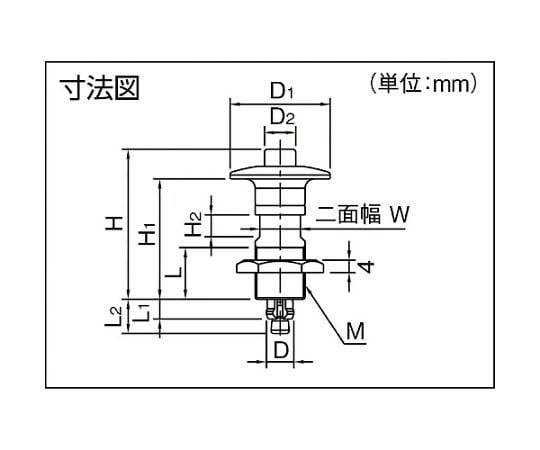

Dimensions (mm) D: 6.5
Dimensions (mm) D1: 23
Dimensions (mm) D2: 6.5
Dimensions (mm) H: 37
Dimensions (mm) H1: 29.0
Dimensions (mm) H2: 5.5
Dimensions (mm) L: 12.5
Dimensions (mm) L1: 9.5
Dimensions (mm) L2: 13.5
Dimensions (mm) M: M12 x 1
Dimensions (mm) W: 10
Dimensions (mm) W1: 19
Hole Clamper
Material/Finish: Body, Nut: Stainless steel (SUS303)
Country of Origin: Japan
Code number: 116-4890
