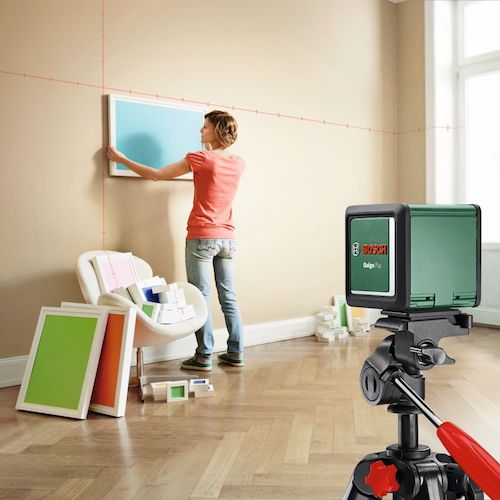

Catalog number: 0603663651 Features: ● Simple and compact, cross line laser for DIY. ● Simply open the irradiation cover to instantly display horizontal and vertical lines. ● The main unit and wall can be installed at right angles using the included target plate. ● In this case, marking points are emitted at equal intervals. ● Comes with a 1/4 inch screw hole that can be attached to a commercially available tripod. ● Comes standard with a multi-mount clip. ● By attaching the included adapter plate to the base, the main unit can be removed with one touch. Applications: ● For checking horizontal and vertical accuracy. ● For wallpaper replacement, tiling, installing shelves, etc. Specifications: ● Length (mm): 65 ● Width (mm): 65 ● Precision: ±0.8mm/m ● Automatic correction range: ±4° ● Power supply: 2 x AAA alkaline batteries ● Irradiation lines: 2-line (vertical and horizontal) cross laser ● Light source: Laser diode ● Light output (mW): 1 or less ● Wavelength (nm): 635 ● Laser safety standard: Class 2 ● Braking method: Gimbal ● Color: Red ● Width (mm): 65 ● Depth (mm): 65 ● Height (mm): 65 ● Tripod mounting part: 1/4 inch ● Wavelength: 635nm ● Output: 1mW or less (Class 2) ● Laser irradiation: 2-line (vertical and horizontal) cross laser ● Irradiation distance: Within 7m ● Irradiation range: 60° ● Measurement precision (m): ±0.8mm/ ● Continuous use time: Approximately 5 hours Material/Finish: ● ABS resin Set contents/Accessories: ● Multi-mount clip (MM2 type) ● Target plate (target for checking right-angle irradiation) ● Adapter plate
