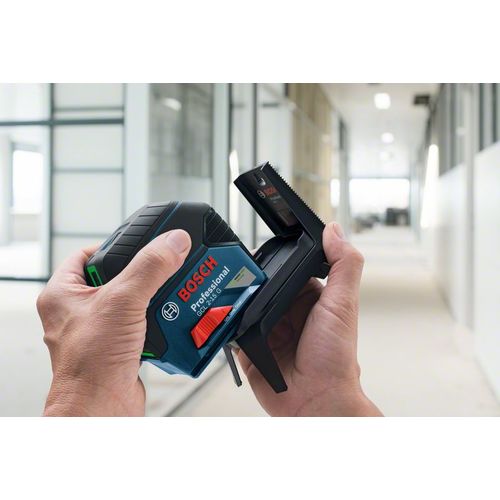

Catalogue number: GCL2-15G Features: ●Uses a convenient rotating table with a magnet. ●Line is a direct type green laser. ●Can also irradiate ground markings and vertical points. (Point laser is red) Applications: ●Marking work. Specifications: ●Length (mm): 106 ●Width (mm): 55 ●Precision: ±0.3mm/m ●Automatic correction range: ±4° ●Power supply: 3 AA alkaline batteries ●Protection rating: IP54 ●Irradiation lines: horizontal, vertical, vertical point, ground markings ●Light source: laser diode ●Light output (mW): less than 10 ●Wavelength (nm): 500-540N・m ●Laser safety standard: Class 2 ●Braking method: Gimbal ●Color: Green (direct ●Direct type), the laser light for the vertical and ground marking points is red●Width (mm): 55●Depth (mm): 112●Height (mm): 106●Tripod mounting section: 1/4 inch, 5/8 inch●Power supply (V): 3 x AA alkaline batteries (included)●1 vertical direction, 1 horizontal direction, ground marking, vertical point●Class 210mW or less●Usage distance: 15m (horizontal), 15m (vertical)●Length x Width (with tripod head attached): 163 x 81mm Material/Finish: ●Polyamide resin (PA) Set contents/Accessories: ●3 x AA alkaline batteries●Rotating table with magnet (RM1)●Target panel●3 x AA alkaline batteries (for testing) Note: ●Tripod sold separately.
