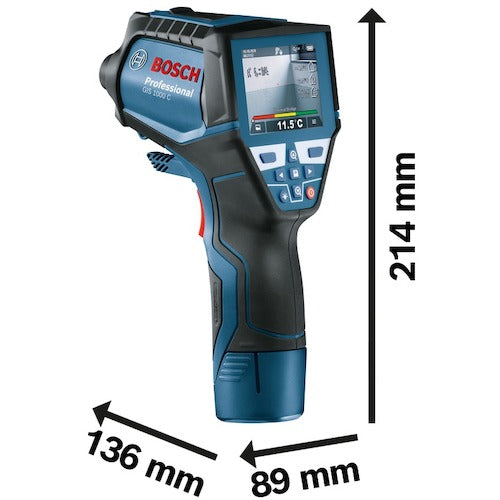

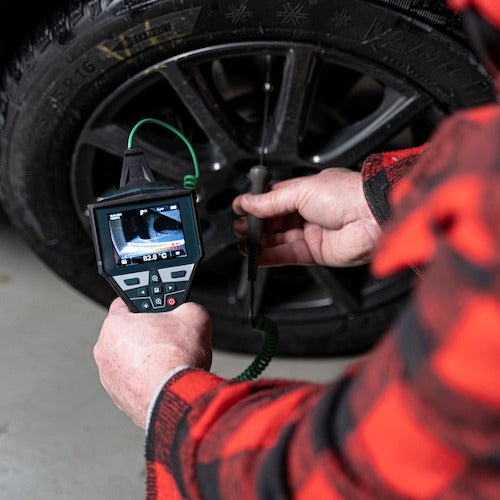

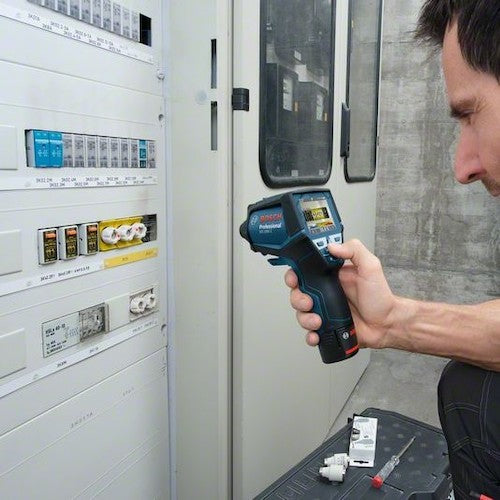

Catalog number: GIS1000CN Features: ● Non-contact measurement of object surface temperature by infrared reception. ● Supports contact measurement of solid and liquid temperature using a thermocouple probe (K type commercially available). ● Contact temperature range and emissivity list have been expanded. ● Measurement image data can be saved and transferred to a smartphone or PC. Applications: ● For non-contact measurement of object surface temperature (radiation temperature) by infrared reception. ● For calculating outdoor temperature based on ambient temperature and relative humidity measurements. ● For detecting the possibility of thermal bridges and mold growth. ● For contact measurement of solid and liquid temperature using a thermocouple probe (K type commercially available). Specifications: ● Measurement temperature range (℃): -40 to +1000 ● Minimum temperature display (℃): 0.1 ● Width (mm): 89 ● Depth (mm): 136 ● Height (mm): 214 ● Distance to measurement range ratio (D to S): 50:1 ● Measurement accuracy (℃): Surface temperature -40 to -20.1℃: ±2.5℃, -20 to -0.1℃: ±1.5℃, 0 to +100℃: ±1℃, +100 to +400℃: ±1℃ (surface temperature >400℃±2%) ● Power supply: AA alkaline battery x 4 batteries or 10.8V lithium-ion battery (sold separately) ● Measurement range: Measurement distance 0.1 to 5m, surface temperature -40 to +1000°C, contact temperature -40 to +1000°C, ambient temperature -10 to +50°C, relative humidity 0 to 100% ● Laser: 635nm, <1mW Class 2 ● Usable ambient temperature range: -10 to +50°C ● Storage ambient temperature range: -20 to +70°C ● Continuous use time: Up to approximately 3 hours (when using AA alkaline batteries) Material/Finish: ● ABS resin Set contents/Accessories: ● Carrying bag ● Micro USB cable ● Battery holder ● 4 AA alkaline batteries (for testing)
