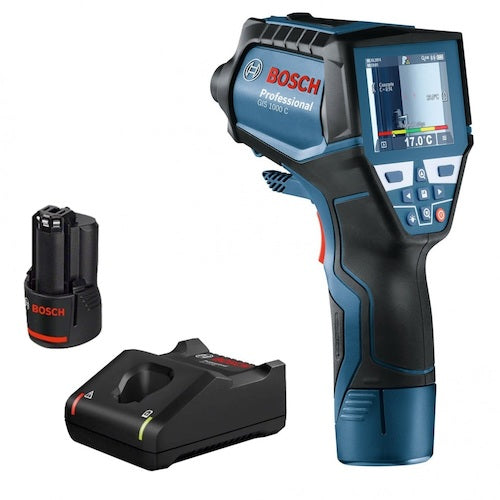

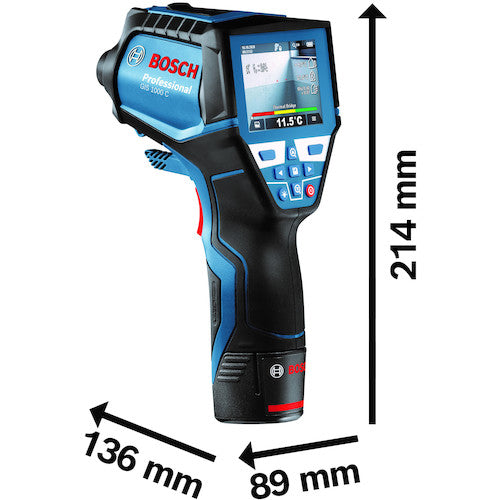

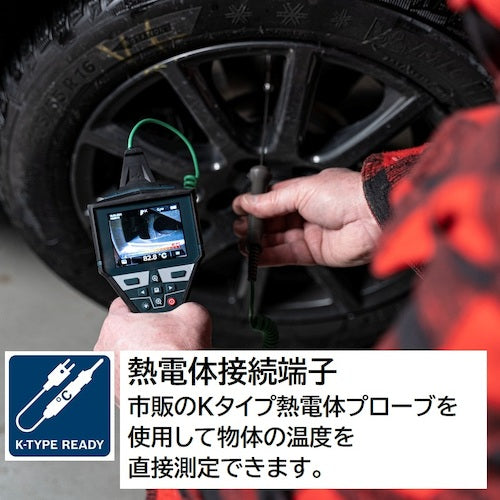

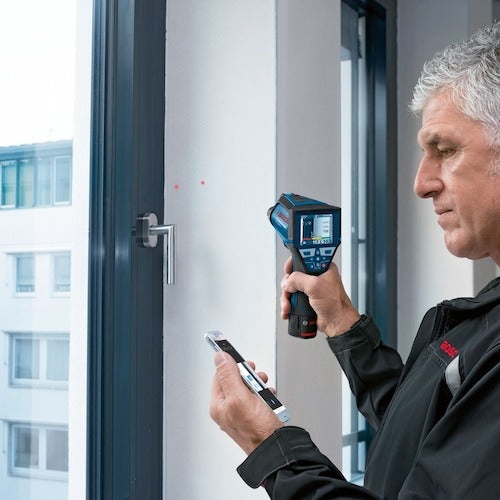

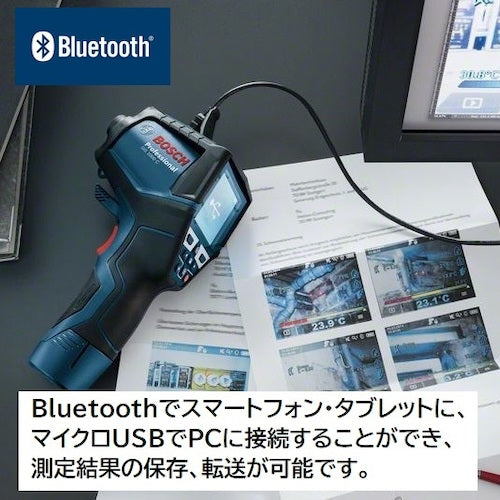

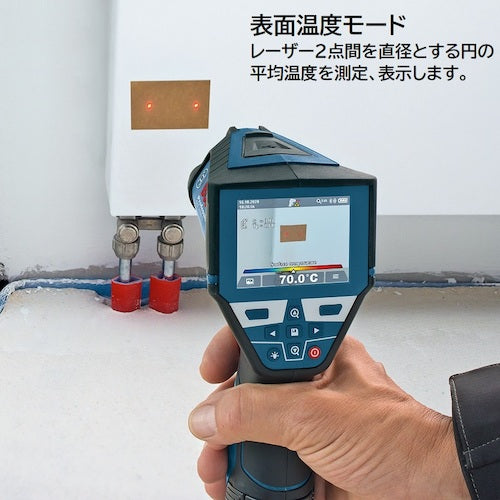

Catalogue number: GIS1000CNSET Features: ● Non-contact measurement of object surface temperature by receiving infrared rays ● Supports contact measurement of solid and liquid temperatures using a thermocouple probe (K type, commercially available) ● Measurement materials can be easily selected from an extensive list of emissivity ● Measurement image data can be saved and transferred to a smartphone or PC ● Can be used with both professional 10.8V batteries or AA alkaline batteries Applications: ● Non-contact measurement of object surface temperature (radiation temperature) by receiving infrared rays ● Calculation of outdoor temperature based on ambient temperature and relative humidity measurements ● Detects the possibility of thermal bridges and mold growth ● Contact measurement of solid and liquid temperatures using a thermocouple probe (K type, commercially available) Specifications: ● Measurement temperature range (℃): -40 to +1000℃ ● Width (mm): 89 ● Depth (mm): 136 ● Height (mm): 214 ● Aiming laser: 635nm, <1mW Class 2 ● Distance to measurement range ratio (D to S): 50:1 ● Power supply (V): Professional 10.8V rechargeable dedicated battery, 4 AA alkaline batteries ● Measurable range: Measurement distance 0.1 to 5m ● Surface temperature: -40 to +1000℃ ● Contact temperature : -40 to +1000°C ● Measurement distance: Measurement diameter ratio 50:1 ● Measurement accuracy: Surface temperature ±2.5°C (-40 to -20.1°C) / ±1.5°C (-20 to -0.1°C) / ±1°C (0 to +100°C) / ±1% (+100 to +400°C) / ±2% (>400°C) ● Continuous use time: Up to approximately 10 hours (when using a 10.8V/2.0Ah lithium-ion battery), up to approximately 3 hours (when using AA alkaline batteries) Material/Finish: ● ABS resin Set contents/Accessories: ● Main unit ● 3.0Ah battery (GBA10.8V3.0Ah) x 1 ● Charger (GAL12V-40) ● Carrying bag ● Micro USB cable ● Alkaline battery holder ● 4 AA alkaline batteries (for testing)
