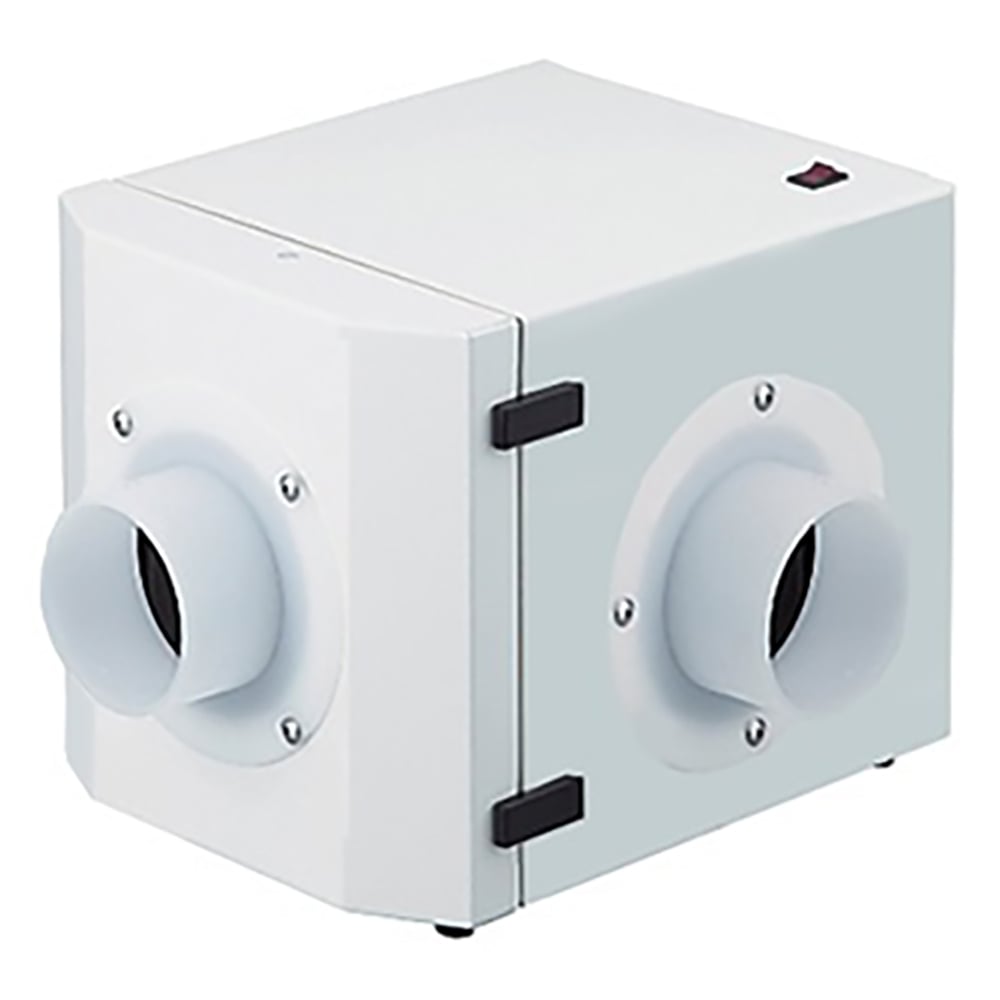

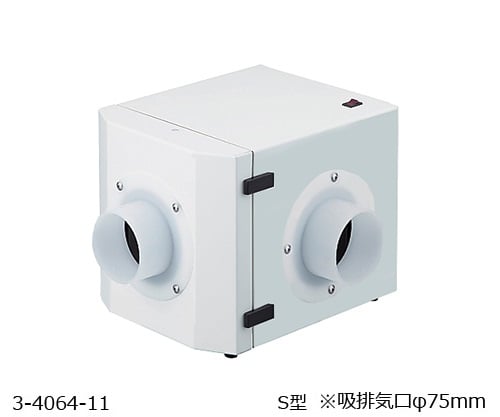

This is a fume hood fan unit that can be freely set up in combination with a hood according to the purpose.
Choose from 6 types depending on your needs. Size (mm): 240 x 260 x 250
Exterior material: Steel (melamine baked coating)
Duct diameter (mm) (intake side/exhaust side): φ75/φ75
Maximum static pressure (kPa) (50Hz/60Hz): 0.34/0.48
Maximum air volume (m3/min) (50Hz/60Hz): 3.4/3.9
Power supply: AC100V 50/60Hz
- Weight(kg):6.5
Fan unit

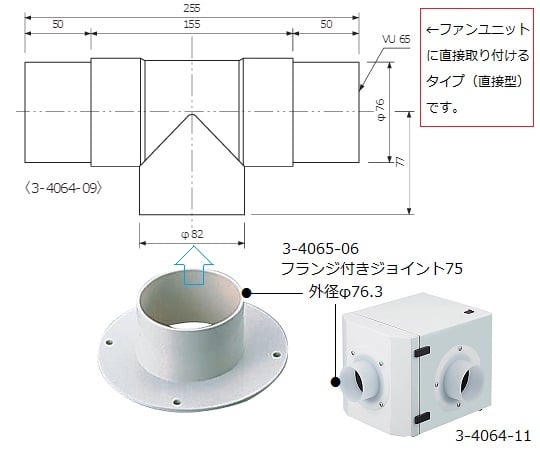

*Please check the available products for activated carbon units, dust removal filter units, and piping parts before purchasing.
