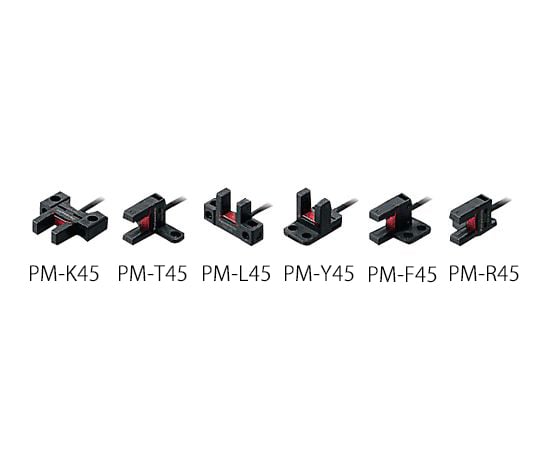

Micro photo sensor (compact, cable type) PM-T45 1 piece

The one-piece molding method means there are no grooves or gaps on the detection surface or body, reducing failures caused by water splashes, dust, etc. The up and down positions of the optical axis can be checked from the front, back, left and right, making it easy to adjust the position of the detection object. It is equipped with a large operation indicator light (orange) that lights up when light enters, and can be seen not only from above but also from the side. It can be easily installed with one or two M3 screws. Type: PM-T45 Output: NPN Cable length: 1m Output: Maximum inflow current / 50mA, Applied voltage / DC30V or less (between output and 0V), Residual voltage / 2V or less (when inflow current is 50mA) / 1V or less (when inflow current is 16mA) Detection distance: 6mm (fixed) Minimum detectable object: 0.8 x 1.2 mm opaque Hysteresis: 0.05mm or less Repeatability: 0.01mm or less Power supply voltage: DC5 to 24V ±10% (ripple P-P 10% or less) Current consumption: 15mA or less Output operation: ON when light is received/ON when light is blocked (2 outputs) Response time: When light is received/20μs or less, when light is blocked/80μs or less Light-emitting element: Infrared LED (peak emission wavelength: 855 nm, non-modulated) Dustproof/waterproof: IP64 (IEC) Material: Case: PBT, Display: Polycarbonate Weight: Approx. 10g Quantity: 1 piece
