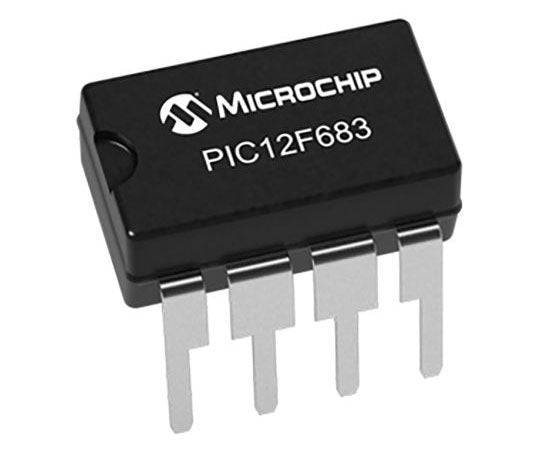

Microcontroller 8-bit RISC PIC12F683 20MHz 3.5 kB Flash 8-Pin PDIP 1 bag (5 pieces) PIC12F683-I/P 1 bag (5 pieces)

PIC12F683 8-bit Microcontroller Microchip's PIC12 microcontroller (MCU) was the world's first 8-pin microcontroller. Initially launched as one-time programmable (OTP) parts, the device series is continually expanded to include special features and further enhancements. The PIC12F683 family of microcontrollers is based on Microchip's mid-range core with an 8-level hardware stack and 35 instructions. These MCUs operate at up to 5 MIPS and have 3.5 KB of program memory and data memory consisting of 128 bytes SRAM and 256 bytes EEPROM. It has an on-board configurable RC oscillator with ±1% accuracy. Features 35 instructions 8-level hardware stack 8MHz internal oscillator – 8MHz to 32 kHz (selectable) 6 I/O pins 1 comparator 4-channel 10-bit analog-to-digital converter (ADC) Capture/Compare/PWM module (CCP) 2 8-bit timers 1 16-bit timer In-Circuit Serial Programming (ICSP) Quantity: 1 bag (5 pieces) Family name: PIC12F683 Package type: PDIP Mounting type: Through hole Number of pins: 8 Device core: PIC Data bus width: 8 bits Program memory size: 3.5 kB Maximum frequency: 20MHz RAM size: 128 B - USB Channel: 0 Number of PWM units: 0 Number of ADC channels: 4 Standard operating supply voltage: 2 → 5.5V Operating temperature Min: -40°C RoHS Compliance Status: Compliant Code number: 121-4232
