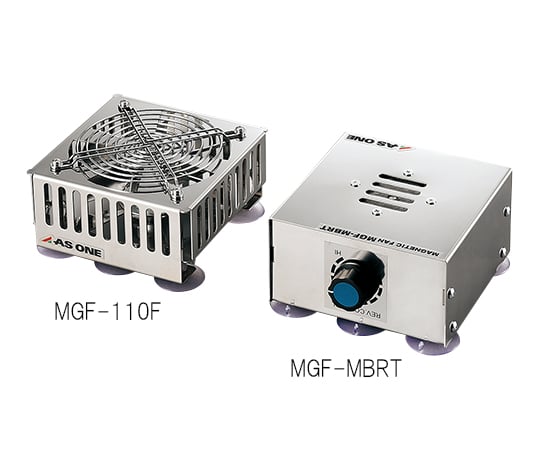

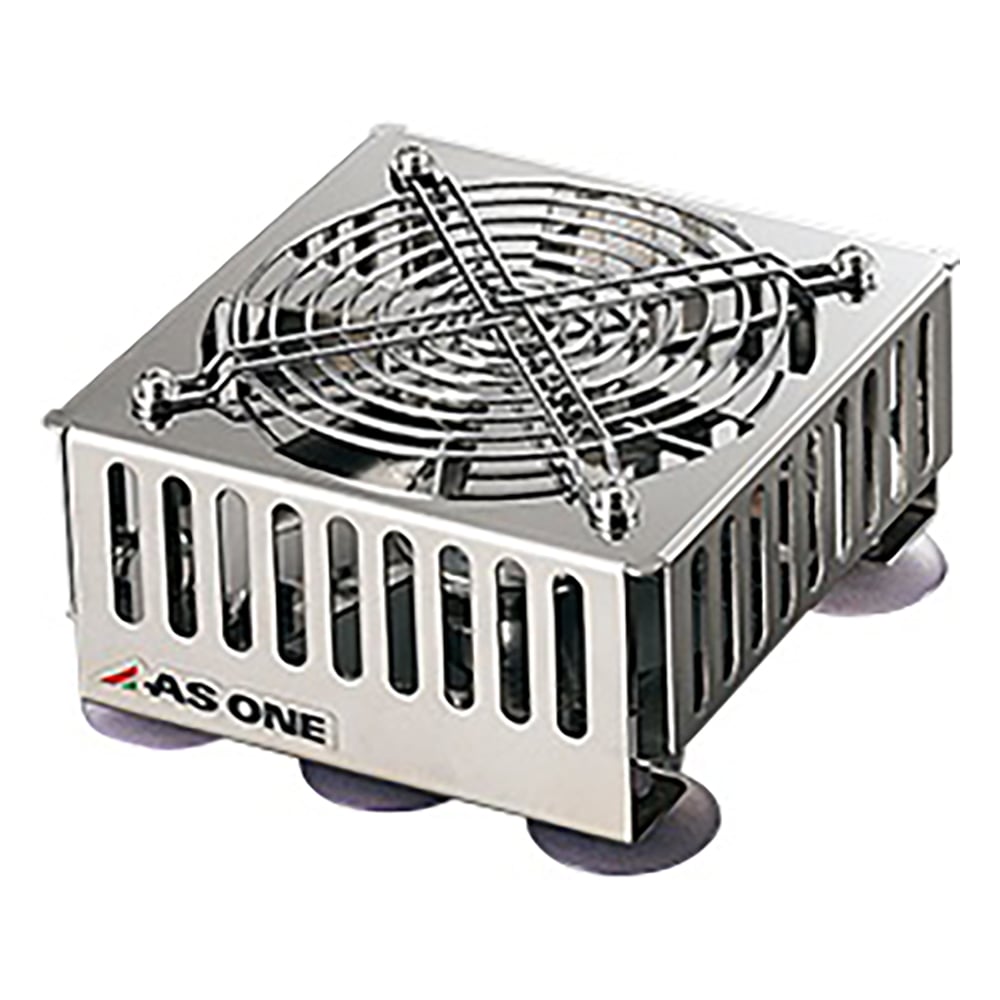

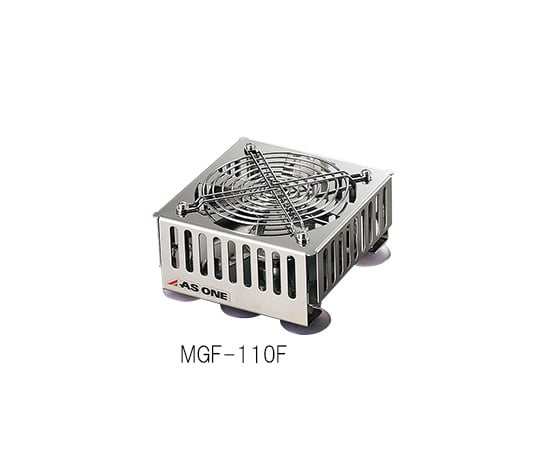

To use the unit, attach the MGF-110F (fan head) inside the unit and the MGF-MBRT (control unit) to the outside (attached with suction cups).
The fan is driven by magnetic force, so the gas inside the container can be agitated without having to drill holes in the container or do any other processing.

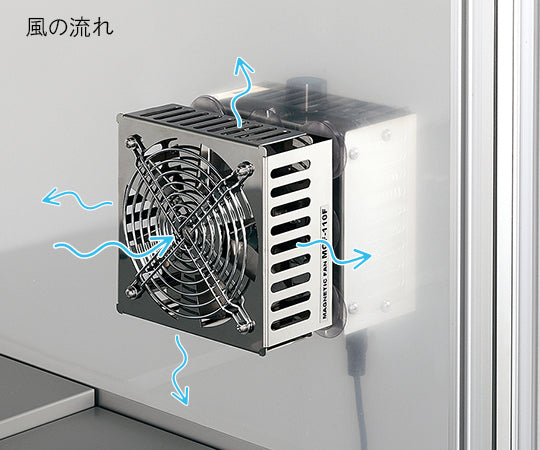

The air volume can be adjusted to suit your needs. Size (mm): 110 x 54 x 110
Weight (g): Approx. 400
Rotation speed: 200 to 3000 rpm (maximum rotation speed varies depending on plate thickness and material).
Ambient temperature: Maximum 50℃
Usable plate thickness: 1 to 20 mm
*Cannot be used on magnetic materials such as steel plates.
*Used in combination with the motor part (MGF-MBRT).
