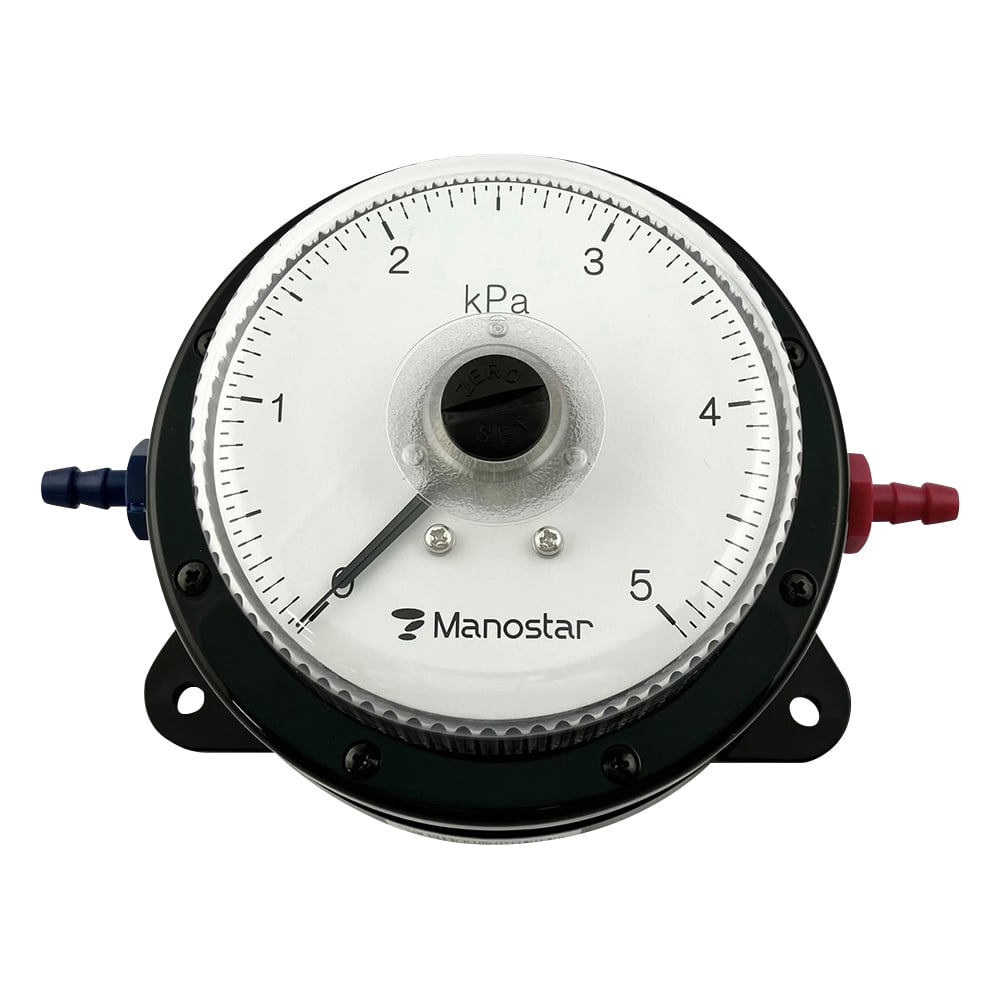

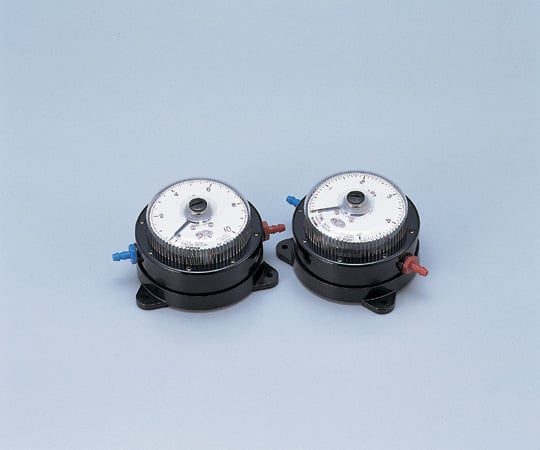

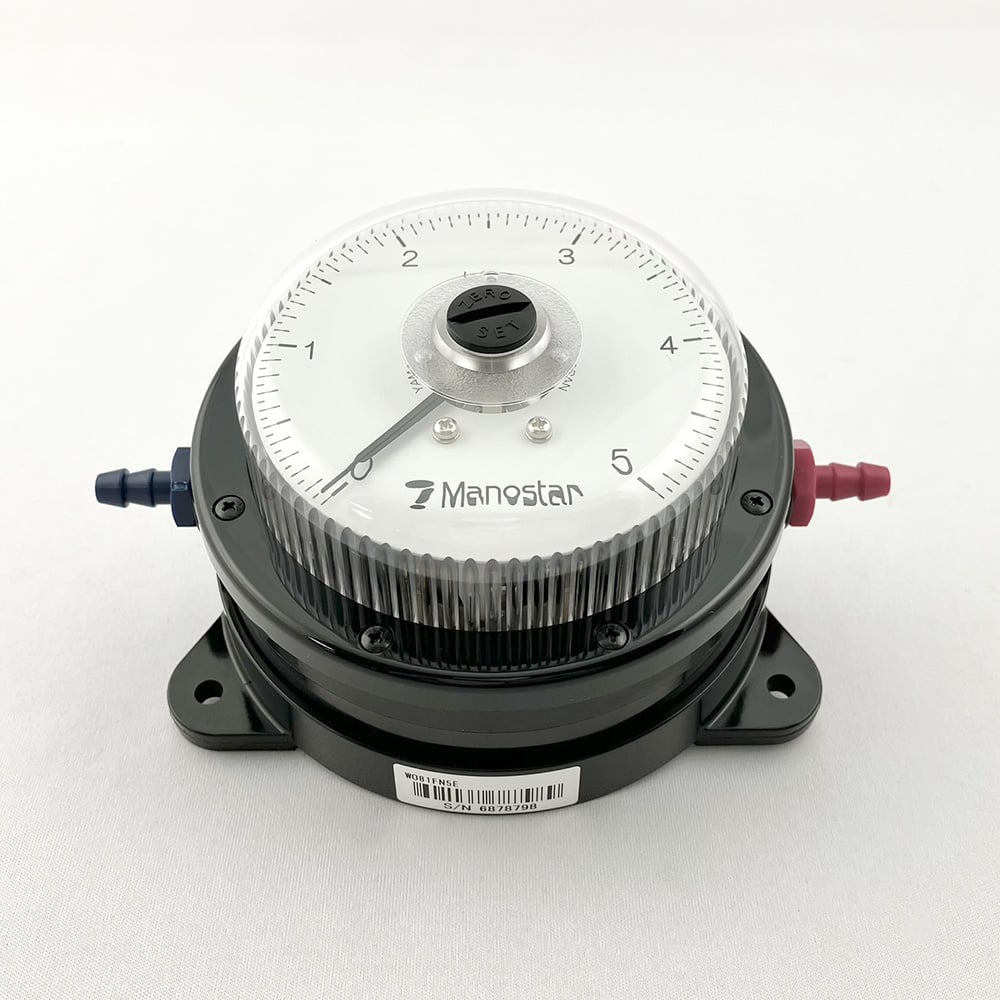

Manostar Gauge (High-performance Micro Differential Pressure Gauge) WO81FN5E 1 unit

It has an easy-to-read wide-angle scale with a pointer rotation angle of 270°. This is a high performance diaphragm with little hysteresis (within accuracy error). Uses a connection base that allows easy polarity conversion. Model number: WO81FN5E Range: 0 to 5kPa Installation position: Any orientation from upward horizontal to vertical Accuracy: ±1.5% FS Pressure measurement method: Differential pressure Element type: Diaphragm type (silicon rubber) Weight: Approx. 270g Scale type: 270° wide angle indication (scale length 170mm) Cap polarity: By swapping the caps marked with red for high pressure and blue for low pressure, rear piping with left or right polarity is also possible. Pressure resistance of instrument body: Approx. 0.2MPa Vibration resistance: 5 to 10 Hz, 10 mm, 10 to 50 Hz, total acceleration amplitude 39 m/s^2 (2 hours each in 3 axis directions) Impact resistance: 100m/s^2 (6 times in each of the 3 axial directions) Applicable gases: Air and non-corrosive gases (liquids are not permitted) Connection port: POM (polyacetal) hose nipple (outer diameter φ7mm) Ambient temperature: -10 to +50°C Ambient humidity during use: 90% RH or less
