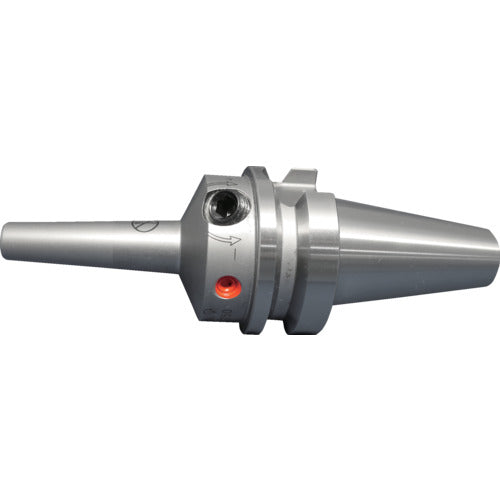

MAPAL High Torque Chuck HTC BT40 Two-sided Constraint Slim Type HTC-JD-FC040-18-120-1-0-A 1 pc

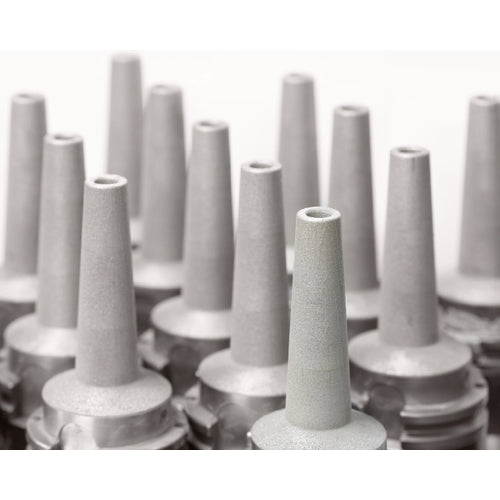

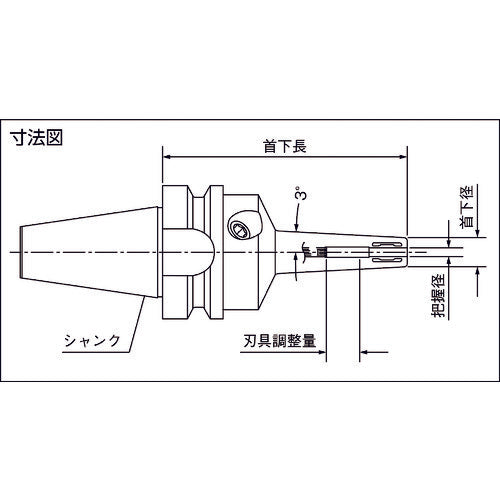

Catalog number: HTC-JD-FC040-18-120-1-0-A Features: ●Innovative additive manufacturing method using 3D printer (metal powder). ●Can be used to replace shrink fit chucks for all precision machining and slim shapes. ●Compared to conventional hydro chucks, the hydraulic clamping point is designed as far up as possible, improving coaxiality and gripping force. ●Excellent runout accuracy and vibration control function extend tool life and improve machining accuracy. ●Despite the 3° taper at the tip, it achieves a tapered shape comparable to a shrink fit. (3 tip opening diameter 10 mm) ●Compatible with tool shanks with flat parts, and empty tightening does not cause failure. ●Stopper function eliminates the need for a torque wrench. Applications: ●For drilling, reaming, and end mill processing. Specifications: ● Shank: BT40 ● Grip diameter (mm): 18 ● Neck length (mm): 120 ● Neck diameter (mm): 26 ● Tool adjustment amount (mm): 10 ● BT shank (two-sided constraint) type ● 4d tip core runout accuracy: within 3 μm ● Center through standard specifications ● Hexagonal wrench sold separately
