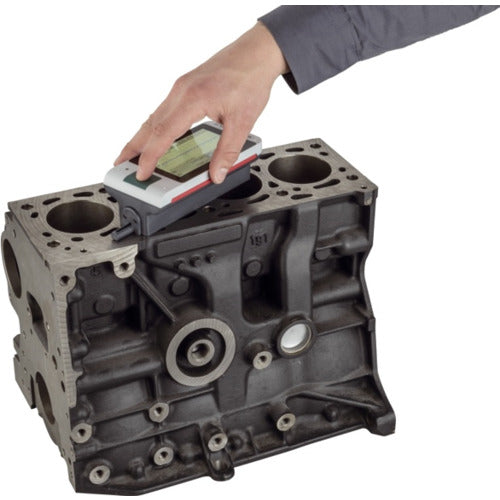

Mahr Portable Surface Roughness Measuring Instrument PS10 (6910230) PS10-SET 1 unit

Catalogue number: PS10-SET Features: ● Small and lightweight portable surface roughness measuring instrument. ● Smartphone format for easy operation. ● Large 4.3 inch TFT illuminated touch screen display. (With rotation function) ● Measurement data is stored on the device. (TXT, X3P, CSV, PDF file format) ● 31 types of parameters provide the same functional range as a calibration laboratory measuring instrument. ● Press the start button to display the initial screen directly. ● Standard and ISO/JIS compliant parameters and parameter list evaluation are possible. ● Built-in rechargeable battery allows up to 1200 measurements on a single charge. ● Roughness standard piece is built-in and removable. (For standard pickup PHT 6-350) ● Removable drive unit for increased flexibility. Applications: ● For shaft and housing measurement, large machine measurement, large workpiece measurement, machining machine inspection, inspection and inspection of incoming goods, and surface roughness measurement at the work site. Specifications: ● Manufacturer code: 6910230 ● Measurement range (μm): 350 ● Roughness curve resolution (nm): 8 ● Power supply (V): 100-264 ● Favorite functions can be called directly ● Memory capacity: 3900 shapes, up to 500000 measurement results, 1500 pdf files (card memory can be expanded up to 32GB microSD card) ● Interface: USB, MarConnect (RS232/USB), microSD (SD［［on］］/SDHC card up to 32GB) ● Asymmetric tolerance lines for peak counts can be set ● Standards can be selected (DIN-ISO/JIS/ASME/MOTIF) ● Automatic cut-off can be selected to ensure accurate measurement results ● Settings can be protected and password protected ● Measurement date and time can be output ● The built-in memory can store approximately 500000 measurement results, 3900 profiles and 1500 pdf files ● Data can be transferred to a PC via USB or microSD card ● PC can be connected via MarConnect interface MarCom software Set contents/accessories: ● Drive unit ● Standard pickup: PHT 6-350 ● Built-in battery ● Roughness standard piece built into the housing ● Pickup protection cover ● Charger/power adapter ● Carrying case with shoulder strap ● USB cable ● Extension cable drive unit ● Height adjustment accessory (built-in)
