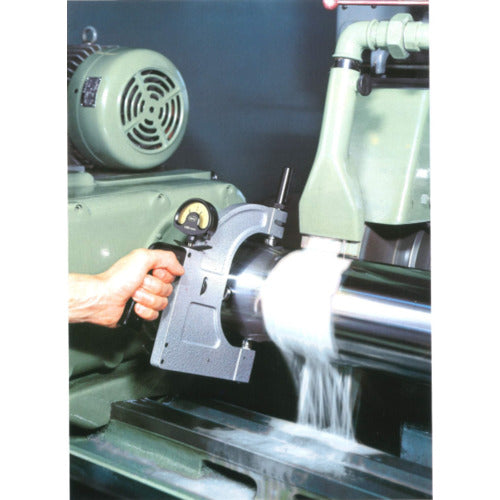

Mahr Indicator Snap Gauge 840FS 100-150mm (4455003) 840FS100-150 1 unit

Catalogue number: 840FS100-150 Features: ● All cylindrical workpieces can be measured, whether directly on the machine tool or in the measuring room. ● Thermally insulated handle prevents heat transfer from the operator's hands. ● The rigid frame opens on one side with a convenient handle made of thermal insulation to eliminate heat transfer from the user's hands. ● Both spindles are made of hardened stainless steel and are mounted and held on long guideways. ● The carbide-tipped measuring surface is slightly chamfered for easy positioning. ● Maximum accuracy The movement of the spindle is directly transmitted to the indicator. ● The built-in spring eliminates user interference and provides a stable measuring force. Applications: ● For cylindrical workpieces. Specifications: ●Manufacturer code: 4455003 ●Measurement range (mm): 100-150 ●Measurement pressure (N): 13.5 (840FS10-30, 30-60, 60-100), 15 (840FS100-150, 150-200) ●Flatness of measurement surface (m): ≦0.5μ ●Parallelism of measurement surface (m): ≦3μ Set contents/accessories: ●Wooden case ●Allen key Note: ●Indicator sold separately.
