Mahr Indicator Snap Gauge 840FS 60-100mm (4455002) 840FS60-100 1 unit

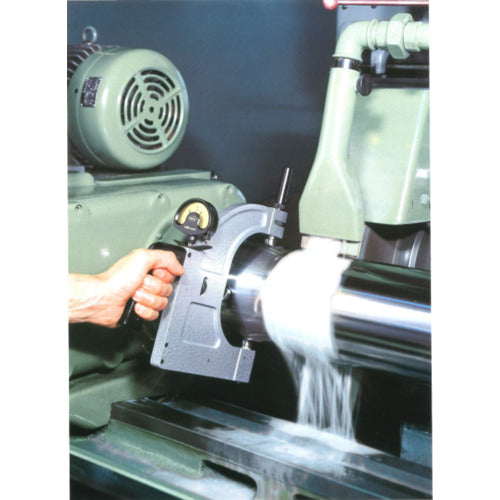

Catalogue number: 840FS60-100 Features: ● All cylindrical workpieces can be measured, whether directly on the machine tool or in the measuring room. ● Thermally insulated handle prevents heat transfer from the operator's hands. ● The rigid frame opens on one side with a convenient handle made of thermal insulation to eliminate heat transfer from the user's hands. ● Both spindles are made of hardened stainless steel and are mounted and held on long guideways. ● The carbide-tipped measuring surface is slightly chamfered for easy positioning. ● Maximum accuracy The movement of the spindle is directly transmitted to the indicator. ● The built-in spring eliminates user interference and provides a stable measuring force. Applications: ● For cylindrical workpieces. Specifications: ●Manufacturer code: 4455002 ●Measurement range (mm): 60-100 ●Measurement pressure (N): 13.5 (840FS10-30, 30-60, 60-100), 15 (840FS100-150, 150-200) ●Flatness of measurement surface: ≦0.5 μm ●Parallelism of measurement surface: ≦3 μm Set contents/accessories: ●Wooden case ●Allen key Note: ●Indicator sold separately.
