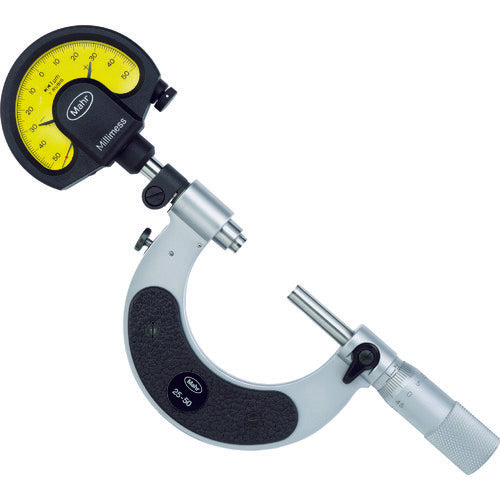

Mahr Inspection Micrometer Indicating Micrometer 40T Measurement Range 0-25mm (4154000) 40T-25 1 unit

Catalog number: 40T-25 Features: ●With lock function. ●With thermal insulation cover. ●Comparative measurements in 1μm units are possible, which is impossible with a micrometer. ●By adopting a dial gauge 1003 mm female, stable measurements are possible. ●Highly refined structure suitable for high-precision measurements that measure errors at the 1μm level. Applications: ●For measuring precision parts that require high accuracy. Specifications: ●Manufacturer code: 4154000 ●Measuring range (mm): 0-25 ●Minimum display (mm): 0.01 ●Instrument error (μm): 2 ●Measuring force (N): 6.5 ●Flatness (μm): 0.2 ●Parallelism (μm): 2 ●Minimum display: 0.01mm (micrometer), 1μm (dial comparator) ●Measurement error: ≦2μm (micrometer), 1μm (dial comparator) ●Retract range (mm): 1.2 ●Spindle diameter (mm): 7.5
