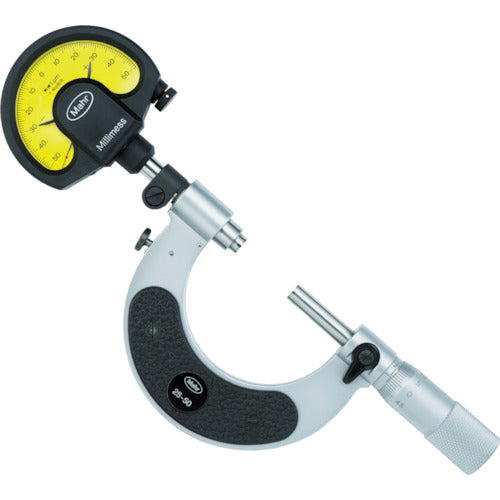

Mahr Inspection Micrometer Indicating Micrometer 40T Measurement Range 25-50mm (4154001) 40T-50 1 unit

Catalog number: 40T-50 Features: ●Lock function included. ●Heat-insulating cover included. ●Comparative measurements in 1 μm increments are possible, which is impossible with a micrometer. ●By using a dial gauge 1003 mm female, stable measurements are possible. ●Highly refined structure suitable for high-precision measurements that measure errors at the 1 μm level. Applications: ●For measuring precision parts that require high accuracy. Specifications: ●Manufacturer code: 4154001 ●Measuring range (mm): 25-50 ●Minimum display (mm): 0.01 ●Instrument error (μm): 2 ●Parallelism (μm): 2 ●Measuring force (N): 6.5 ●Flatness (μm): 0.2 ●Retract range (mm): 1.2 ●Spindle diameter (mm): 7.5
