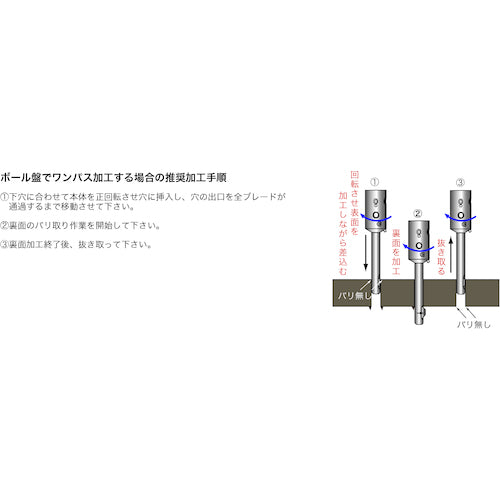

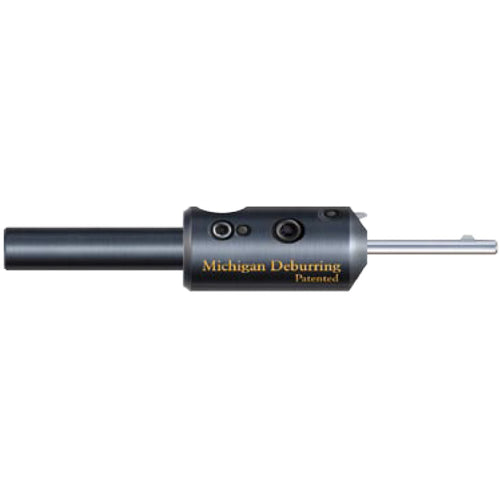

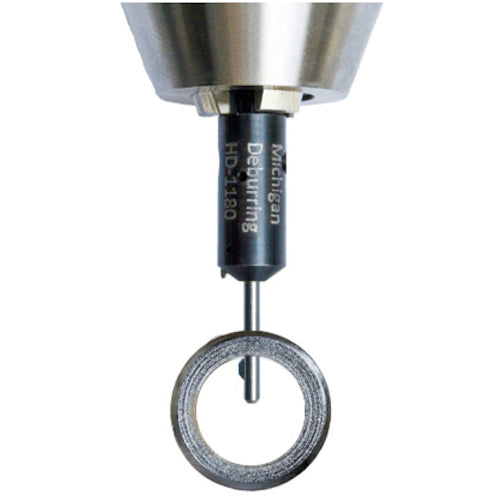

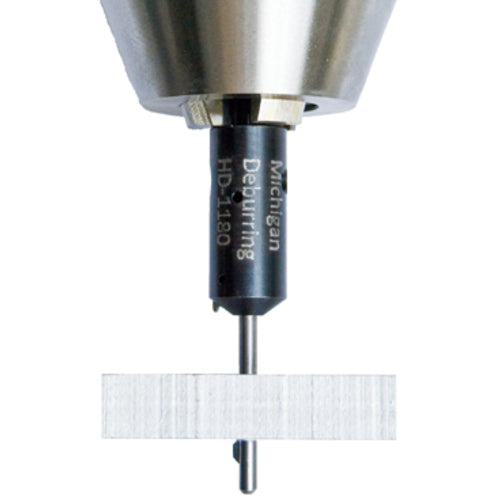

Catalog number: C-230 Features: ● Suitable for deburring the back and front of holes with a minimum diameter of φ1.00 to a maximum diameter of φ26.00. ● Deburring can be done in one pass (reciprocating motion in the Z direction with only forward rotation), which significantly reduces the processing cost per hole. ● The modular type for small diameters can also be done manually using the MDT-800 handle. ● Suitable for a wide range of materials from general steel to aluminum and stainless steel. Applications: ● For deburring the back and front of through holes. Specifications: ● Compatible blade: BC5252S ● Holder name: HC-0890 ● Compatible handle: MDT-800 ● Total length (mm): 69.2 ● Shank diameter (mm): 6 ● Processing range (mm): 2.26 to 2.36 ● Set contents: Holder: HC-0890, Pilot: P-0890, Blade: BC5252S ● Common blade: BC5252S ● Three-part structure (holder + pilot + HSS blade) ● For small diameters
