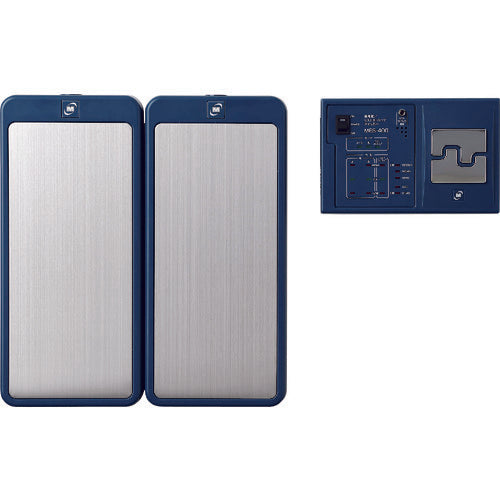

Midori Anzen Electrostatic Shoe/Wrist Strap Checker MES-400 MES-400 1 S

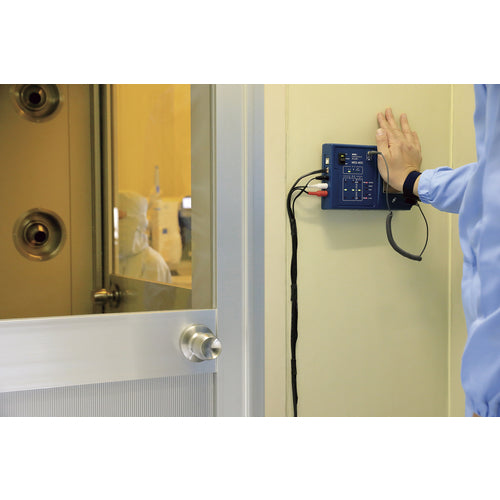

Catalog number: MES-400 Features: ●A function has been added to save personal data and measurement data to a Windows PC using dedicated software. ●The left and right electrostatic shoes can be checked separately. ●The upper and lower limits of the judgment level can be selected. ●In addition to keyboard input, personal data such as the worker's name and department name can also be entered from a QR code using a commercially available barcode reader. ●The function of outputting the OK/NG judgment result to the outside and linking it with the equipment allows you to unlock the electronic lock of an air shower room or activate the buzzer of an explosion-proof facility. ●The electrostatic shoes and wrist straps can be checked simultaneously or individually depending on the mode setting. ●If no measurement is performed for a certain period of time, it will automatically switch to sleep mode. Applications: ●For checking the electrical resistance value of electrostatic shoes and wrist straps. ●For judging the performance of electrostatic shoes and wrist straps. Specifications: ●Width (mm): 200 ●Depth (mm): 40 ●Height (mm): 130 ●Shoe side electrode width (mm): 160 ●Judgment level accuracy: Less than 100MΩ ±10% / More than 100MΩ ±20% ●Measurement time: Approximately 3 seconds ●Measurement voltage: (Shoe) DC24V, (Wrist strap) DC10V ●Maximum measurement current (at short circuit): 25μA or less ●Measurement mode: (All modes) Left shoe → Right shoe → Wrist strap, (Shoe mode) Left shoe → Right shoe, (Wrist strap mode) Wrist strap only ●Specification temperature and humidity range: 0℃ to 40℃ 90%RH or less (but no condensation) ●Dimensions: (Measuring part) 200mm × 130mm × 40mm, (Shoe side electrode part) 350mm × 160mm × 35mm ●Communication: USB B type (Windows PC using dedicated communication data display software) Measurement data can be transferred to the PC.) *The communication data display software can be downloaded free of charge from the website only for purchasers. ●Power supply (V): AC adapter (DC6V) ●Wrist strap check function: Upper limit: 10MΩ Lower limit: 0.75MΩ ●Shoe check function: Both the upper and lower limits of the judgment setting can be changed (Upper limit: 10MΩ, 100MΩ, 1000MΩ) (Lower limit: 0.1MΩ, 1MΩ) Set contents/accessories: ●AC adapter Caution: ●This product is not explosion-proof.
