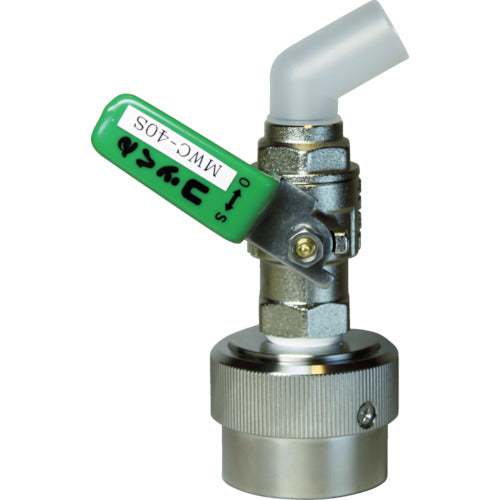

Miyasaka One-touch fuel filler valve Kokkun reinforced mounting type Lever green MWC-40SG 1 piece

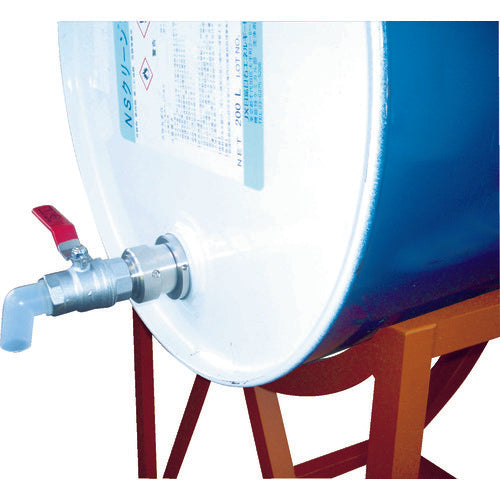

Catalogue number: MWC-40SG Features: ●The mounting part of the Kokkun B type has been changed to stainless steel for reinforcement. ●There are two types: a φ15 outlet for small-scale dispensing and a φ25 outlet for large-scale dispensing. ●The valve is 1/2 full bore for small-scale dispensing and 1 inch full bore for large-scale dispensing. ●Equipped with a movable elbow, so there is no dripping of attached liquid after opening the lever. Applications: ●For dividing liquids into smaller portions. Specifications: ● Suitable fluids: Most liquids except solvents ● Suitable cans: Drums (requires adapter), pails, and 18L cans (can outlet outer diameter 41mm x inner diameter 32.5mm JIS B type nozzle B40) ● Diameter (mm): 32.5 ● Lever color: Green ● Gasket: NBR ● Opening (mm): 50 ● Depth (mm): 142 ● Height (mm): 75 ● Width (mm): 55 ● Total length (mm): 130 ● Color: Green ● Can nozzle dimensions: Outer diameter 41mm x inner diameter 32.5mm (JIS B type nozzle B40) (JIS B type nozzle B40 when using 18L cans and pails) Material/Finish: ● Mounting part: Stainless steel (SUS303) ● Gasket: NBR ● Valve: BS (NicrP) ● Elbow: Polypropylene (PP) Caution: ● Please make an air hole in the top of the can. ● If the can nozzle is made of resin, you need to check whether it can be used. ●When using with drums, a special adapter (DRA-1) is required.
