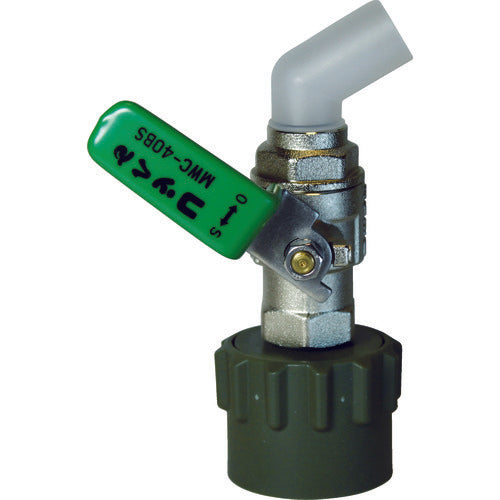

Miyasaka One-touch fuel filler Cock B type (Φ40) Green lever MWC-40BSG 1 piece

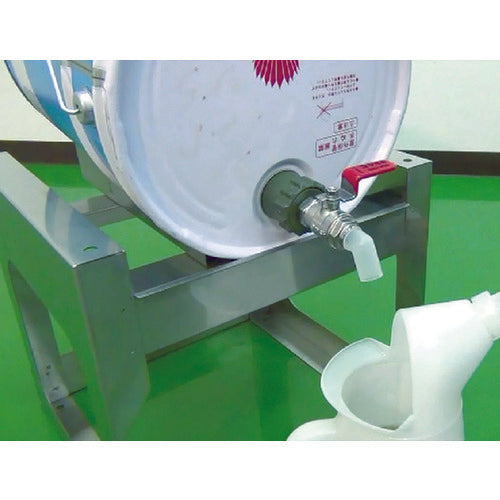

Catalogue number: MWC-40BSG Features: ● Anyone can easily attach and detach with one touch. ● Allows smooth oil supply without spilling. ● Equipped with a movable elbow, so there is no dripping of oil after closing the lever. ● Oil types can be classified by color coding of the cock lever. ● Valve is 1/2 full bore. Applications: ● For dividing liquids into smaller portions. Specifications: ● Suitable fluids: Most liquids except solvents ● Suitable cans: Pale cans, 18L cans ● Diameter (mm): 32.5 ● Lever color: Green ● Gasket: NBR ● Mounting diameter (mm): 40 ● Width (mm): 54 ● Depth (mm): 137 ● Height (mm): 75 ● Width (mm): 55 ● Total length (mm): 130 ● Mounting nozzle dimensions: B40 ● Color: Green ● Can outlet outer diameter (mm): 41 x 32.5 ● Can nozzle dimensions: Outer diameter 41 mm x inner diameter 32.5 mm (JIS B type nozzle B40) Material/Finish: ● Mounting part: Polypropylene (PP) ● Valve: BS (NicrP) ● Gasket: NBR ● Elbow: Polypropylene (PP) Caution: ● Please make an air hole in the top of the can. ● If the can nozzle is made of resin, you need to check whether it can be used.
