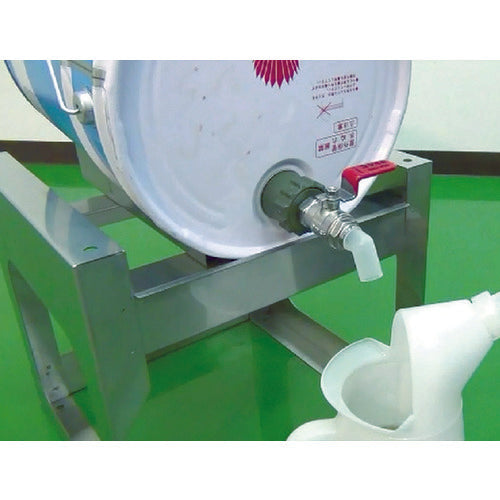

Miyasaka One-touch fuel filler valve Kokkun B type (for Φ50) Green lever MWC-50BSG 1 piece

Catalogue number: MWC-50BSG Features: ● Anyone can easily attach and detach with one touch. ● Allows smooth oil supply without spilling. ● Equipped with a movable elbow, so there is no dripping of oil after closing the lever. ● Oil types can be classified by color coding of the cock lever. ● Can be used repeatedly, making it economical. Applications: ● For dividing liquids into smaller portions. Specifications: ● Suitable fluids: Most liquids except solvents ● Suitable cans: Pails, 18L cans ● Diameter (mm): 40 ● Lever color: Green ● Gasket: NBR ● Mounting diameter (mm): 50 ● Width (mm): 61 ● Depth (mm): 137 ● Height (mm): 75 ● Width (mm): 60 ● Total length (mm): 130 ● Mounting nozzle dimensions: B50 ● Color: Green ● Can outlet outer diameter (mm): 49 x 40 ● Can nozzle dimensions: Outer diameter 48.9 mm x inner diameter 40 mm (JIS B type nozzle B50) Material/Finish: ● Mounting part: Polypropylene (PP) ● Valve: BS (NicrP) ● Gasket: NBR ● Elbow: Polypropylene (PP) Caution: ● Please make an air hole in the top of the can. ● If the can nozzle is made of resin, you need to check whether it can be used.
