Miyasaka One-touch fuel filler valve Kokkun B type Viton specification Lever specification Cap Φ50mm Yellow MWC-50BSY-VITON 1 piece

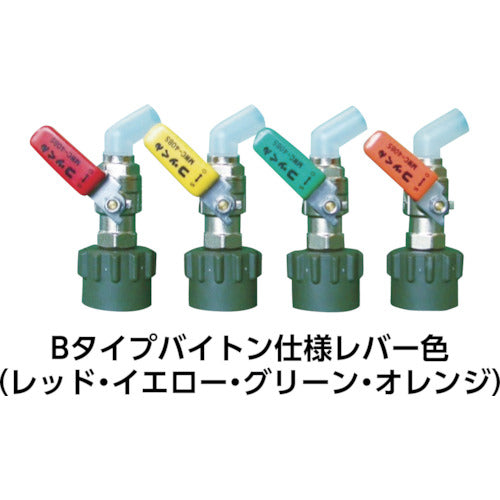

Catalogue number: MWC-50BSY-VITON Features: *Standard type packing has been changed to a material with excellent chemical resistance. *Anyone can easily attach and remove with one touch. *Smooth oil supply without spilling. *Equipped with a movable elbow, there is no dripping of oil after closing the lever. *Oil types can be classified by color coding of the cock lever. *Valve is 1/2 full bore. Applications: *For dividing liquids into smaller portions. Specifications: ● Suitable fluids: Alcohol, ethanol, etc. ● Suitable cans: Pale cans, 18L cans ● Diameter (mm): 40 ● Lever color: Yellow ● Gasket: Viton [R] ● Mounting diameter (mm): 50 ● Width (mm): 60 ● Total length (mm): 130 ● Mounting nozzle dimensions: B50 ● Color: Yellow ● Can nozzle dimensions: Outer diameter 48.9mm x inner diameter 40mm (JIS B type nozzle B50) Material/Finish: ● Gasket: Viton [R] ● Mounting part: Polypropylene (PP) ● Valve: BS (NicrP) ● Elbow: Polypropylene (PP) Caution: ● Please make an air hole in the top of the can. ● If the can nozzle is made of resin, you need to check whether it can be used.
