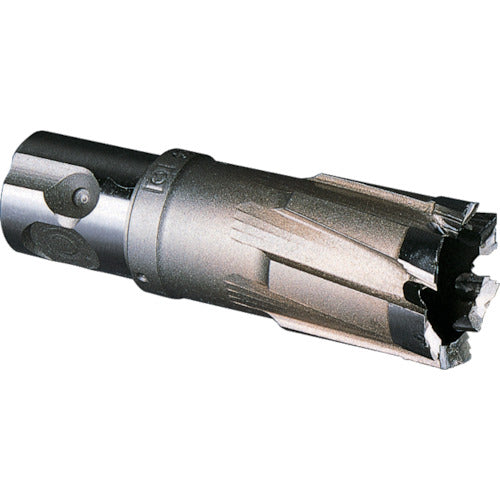

Miyanaga Magnetic Drill Cutter Deltagon Metal Borer 350A Φ21.5 DLMB35A215 1 piece

Catalogue number: DLMB35A215 Features: ●One-touch machine attachment. ●High-speed, high-precision drilling is possible with little force. ●Durability is greatly improved due to the unique three-part cutting edge shape. ●Workability and chip removal are also greatly improved. Applications: ●Cutting materials: For drilling holes in steel plates, structural steel, stainless steel plates, cast iron, etc. up to 35 mm thick. ●Compatible with welded structural steel (SM material). Compatible with architectural structural steel (SN material). ●Ideal for drilling holes in shipbuilding, bridges, formwork, and steel-frame buildings. Specifications: ● Blade diameter (mm): 21.5 ● Maximum processing thickness (mm): 35 ● Compatible models: Nitto Kohki (QA-4000, A-3000) ● Compatible motors: Magnetic drill press (Shank assembly (MBSK2A or MBSK3A) sold separately is required for vertical drill press, radial drill press, lathe, and milling machine.) Material/Finish: ● Blade: Carbide tip
