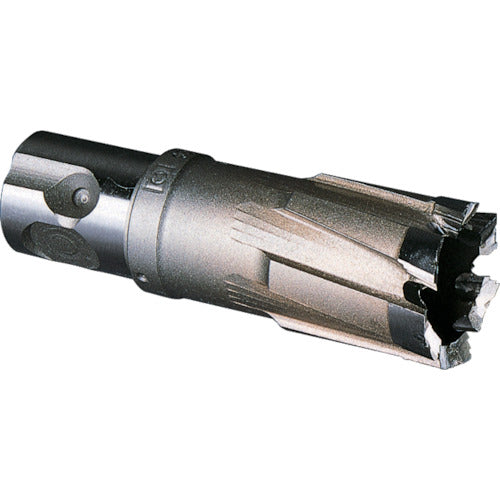

Miyanaga Magnetic Drill Cutter Deltagon Metal Borer 350A Φ40 DLMB35A40 1 piece

Catalogue number: DLMB35A40 Features: ●One-touch machine attachment. ●High-speed, high-precision drilling is possible with little force. ●Durability is greatly improved due to the unique three-part cutting edge shape. ●Ease of use and chip removal are also greatly improved. Applications: ●Cutting materials: For drilling holes in steel plates, shaped steel, stainless steel plates, cast iron, etc. up to 35 mm thick. ●Compatible with welded structural steel (SM material). Compatible with architectural structural steel (SN material). ●Ideal for drilling holes in shipbuilding, bridges, formwork, and steel-frame buildings. Specifications: ● Blade diameter (mm): 40 ● Maximum processing thickness (mm): 35 ● Compatible models: Nitto Kohki (QA-4000, A-3000) ● Compatible electric motors: Magnetic drill press (A shank assembly (MBSK2A or MBSK3A), sold separately, is required for upright drill presses, radial drill presses, lathes, and milling machines.) Material/Finish: ● Blade: Carbide tip Caution: ● It is not suitable for drilling stainless steel with a magnetic drill press.
