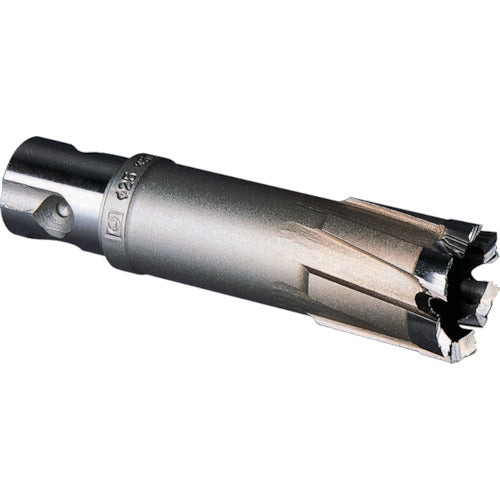

Miyanaga Magnetic Drill Cutter Deltagon Metal Borer 500A Φ22.5 DLMB50A225 1 piece

Catalog number: DLMB50A225 Features: ● One-touch machine attachment. ● Unique three-part cutting edge shape significantly increases durability. Applications: ● Workpiece: Drilling holes in steel plates, shaped steel, stainless steel plates, cast iron, etc. up to 50 mm thick. ● Compatible with welded structural steel (SM material). Compatible with architectural structural steel (SN material). ● Ideal for drilling holes in shipbuilding, bridges, formwork, and steel-frame buildings. Specifications: ● Blade diameter (mm): 22.5 ● Maximum processing plate thickness (mm): 50 ● Compatible models: Nitto Kohki (QA-6500, A-5000) ● Compatible motor: Magnetic drill press (Shank assembly (MBSK2A or MBSK3A) sold separately is required for vertical drill press, radial drill press, and milling machine.) Material/Finish: ● Blade: Carbide tip Caution: ● Stainless steel drilling is not suitable for magnetic drill press.
