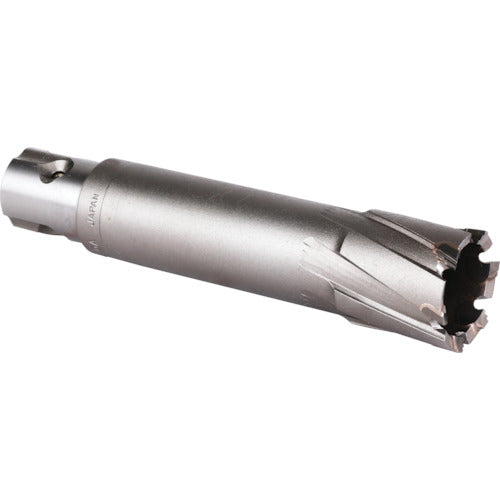

Miyanaga Magnetic Drill Cutter Deltagon Metal Borer 750A Φ26.0 DLMB75A260 1 piece

Catalogue number: DLMB75A260 Features: ●One-touch machine attachment. ●Durability is greatly improved by the unique three-part cutting edge shape. Applications: ●Cutting materials: steel plates, shaped steel, stainless steel plates, cast iron, etc. ●Compatible with welded structural steel (SM material). Compatible with architectural structural steel (SN material). ●Cutting materials: For drilling holes in steel plates, shaped steel, stainless steel plates, cast iron, etc. up to 75 mm thick. ●Compatible with welded structural steel (SM material). ●Compatible with architectural structural steel (SN material). ●Ideal for drilling holes in shipbuilding, bridges, formwork, and steel-frame buildings. Specifications: ● Blade diameter (mm): 26 ● Maximum processing thickness (mm): 75 ● Compatible models: Nitto Kohki (QA-6500, A-5000) ● Compatible electric motors: Magnetic drill press (A shank assembly (MBSK2A or MBSK3A), sold separately, is required for upright drill presses, radial drill presses, and milling machines.) Material/Finish: ● Blade: Carbide tip Caution: ● It is not suitable for drilling stainless steel with a magnetic drill press.
