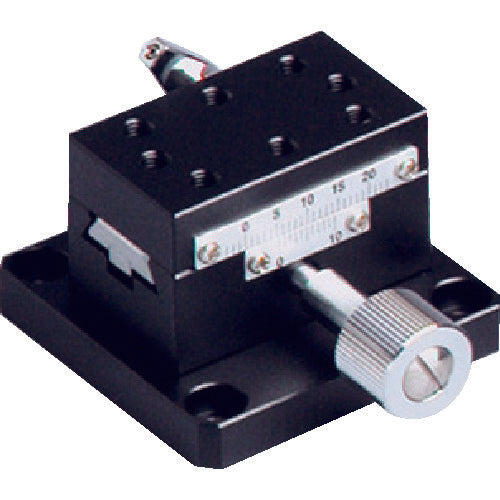

MIRUC Dovetail Stage X-Axis XJK-40 1 pc

Catalog number: XJK-40 Features: * Smooth sliding and high durability. * Reinforced clamp lever provides increased fixing force and allows the lever position and direction to be freely set. Specifications: ● Stage surface (mm): 24.8 x 42 ● Travel distance (mm): ± 12 ● Travel accuracy straightness (μm): 20 ● Travel accuracy parallelism during movement (μm): 25 ● Horizontal load capacity (N): 3 ● Straightness (μm): 20 ● Parallelism during movement (μm): 25 ● Load capacity (N/kgf): 29.4/3 ● Travel distance per one handle rotation (mm): 18 ● Travel accuracy straightness (μm): 20 ● Travel accuracy parallelism during movement (μm): 25 ● Load capacity (N/kgf): 29.4(3) ● Minimum scale reading (mm): 0.1 ● Rack and pinion type ● Minimum scale reading: 0.1mm Material/Finish: ● Stage body: Aluminum alloy ● Surface treatment: Matte black anodized
