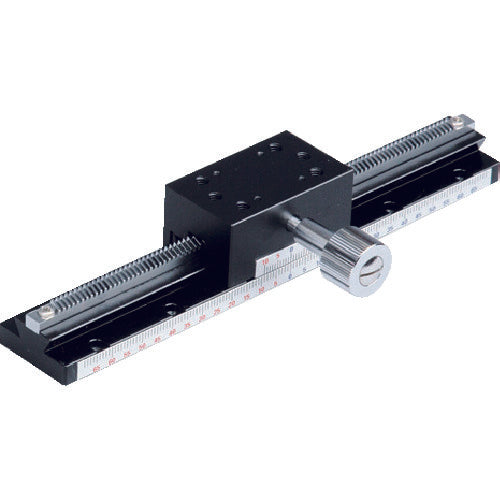

MIRUC Dovetail Long Stage X-Axis XLSR-150 1 pc

Catalog number: XLSR-150 Features: ● The long stage is made of aluminum and is lightweight, slim, and has a long stroke. ● It can be attached from either direction, with an M2 screw on the front side and an M3 screw on the back side. Specifications: ● Stage surface (mm): 25 x 42 ● Travel distance (mm): ±65 ● Travel accuracy straightness (μm): 40 ● Travel accuracy parallelism during movement (μm): 40 ● Horizontal load capacity (N): 3 ● Straightness (μm): 40 ● Parallelism during movement (μm): 40 ● Load capacity (N/kgf): 29.4/3 ● Travel distance per one handle rotation (mm): 18 ● Travel accuracy straightness (μm): 40 ● Travel accuracy parallelism during movement (μm): 40 ● Load capacity (N/kgf): 29.4(3) ● Minimum scale reading (mm): 0.1 ● Rack and pinion type ● Minimum scale reading: 0.1mm Material/Finish: ● Stage body: Aluminum alloy ● Surface treatment: Matte black anodized
