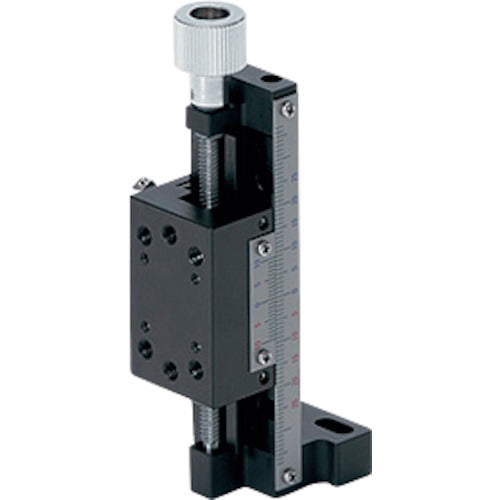

Miruc Precision Stage Multi-function Feed Screw Stage Z-Axis Mass 0.16kg ZTSC-70-2 1 piece

Catalog number: ZTSC-70-2 Features: ●This revolutionary feed screw stage allows you to select the travel distance per one turn of the handle from 2mm, 5mm, or 10mm depending on the application. ●Uses a visually easy-to-read center-distributed color scale. ●The scale and clamp lever can be freely switched between left and right. Specifications: ●Stage surface (mm): 25 x 40 ●Travel distance (mm): ±17 ●Travel accuracy Straightness (μm): 30 ●Travel accuracy Parallelism during movement (μm): 30 ●Load capacity X-axis (N): 3 ●Travel distance per one turn of the handle (mm): 2 ●Travel accuracy Straightness (μm): 30 ●Travel accuracy Parallelism during movement (μm): 30 ●Load capacity Z-axis (N): 1.5 ●Minimum scale reading (mm): 0.1 ●Screw type ●Minimum scale reading: 0.1mm Material/Finish: ●Stage body: Aluminum alloy ●Surface treatment: Matte black anodized
