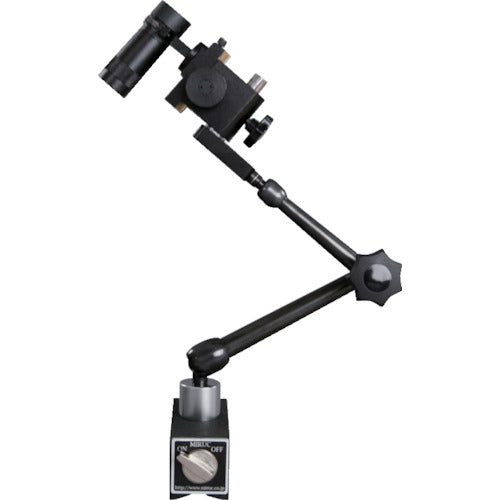

Mirac Long Focal Length Microscope WL-1CM-FR WL-1CM-FR 1 S

Catalog number: WL-1CM-FR Features: ●This model is exclusively for C-mount type CCD and USB cameras. ●Ideal for applications that require an optical system with a particularly long working distance, such as when there is no space to install it inside the device due to interference with the surroundings or when you want to observe from a distance. Applications: ●Non-destructive testing, checking for hazardous materials, etc. ●Installation of machines and devices, alignment of processed products, etc. Specifications: ●Total magnification (times): Maximum 17.5 ●Working distance (mm): 350 to ∞ ●Set contents: Optical system main body WL-1CM, connection adapter for WL-1, dedicated holder HI slider, FR stand ●Actual field of view: 22 mm (when working distance is 300 mm), 25 mm (when working distance is 350 mm), 47 mm (when working distance is 500 mm) Set contents/accessories: ●Optical system main body WL-1CM ●Connection adapter for WL-1 ●Dedicated holder HI slider ●FR stand
