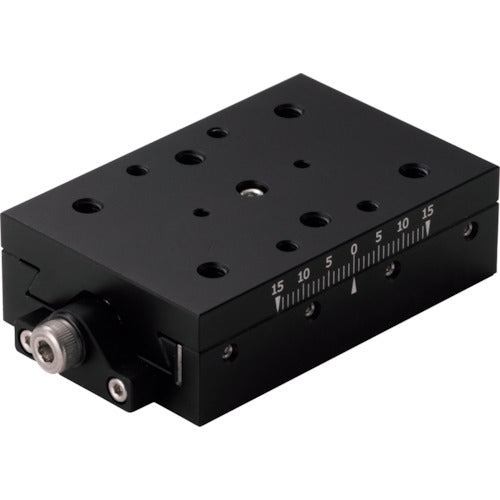

Mirac X-axis stage Self-lock stage 40X60 SLX40-60 1 unit

Catalogue number: SLX40-60 Features: ●This stage does not move slightly from the position where it was stopped after positioning. ●Ideal for workpieces that you do not want to move for long periods of time after position adjustment is complete. ●Use a hex wrench or hex driver to move the stage. Specifications: ●Stage surface (mm): 40 x 60 ●Travel amount (mm): ±15 ●Travel accuracy straightness (μm): 30 ●Travel accuracy parallelism during movement (μm): 30 ●Horizontal load capacity (N): 58.8 ●Straightness (μm): 30 ●Parallelism during movement (μm): 30 ●Compatible stage size (mm): 40X60 ●Load capacity (N/kgf): 58.8/6 ●Travel amount: ±15 ●Feed screw type X-axis stage Material/Finish: ●Stage body: Made of aluminum alloy
