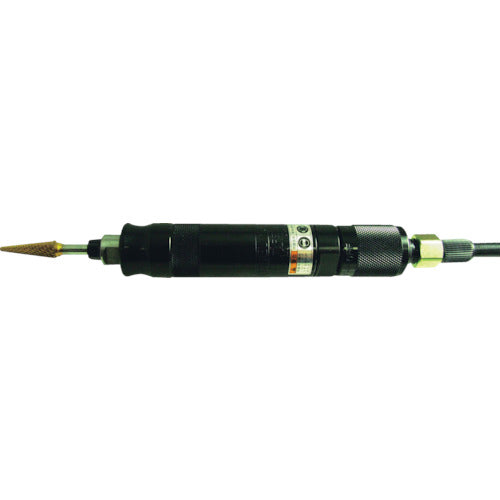

Muraki New Motor Type 3 Front Exhaust Type TYPE-3 U-3 1 unit

Catalog number: U-3 Features: ● No vibration during rotation due to high precision of collet chuck. ● Uses a vane motor with high torque, high speed rotation, and ultra-precise design. ● Infinitely variable speed to suit grinding and polishing tools. Applications: ● Precision finishing of die-casting molds, casting molds, press molds, and plastic molds. ● Deburring, chamfering, polishing, engraving, inner surface processing, and post-processing of sheet metal welding. Specifications: ● Chuck inner diameter (mm): 3/6 ● No-load speed (min-1): 35000 ● Air consumption (m3/min): 0.25 ● Hose mounting port: R1/4 ● Exhaust: Front ● Total length (mm): 173 ● No-load speed (rpm): 35000 ● Air pressure used: 0.5MPa ● Throttle method: Flow control valve ● Applicable shaft diameter: 3mm/6mm ● Exhaust direction: Front Note: ● Tip tools are sold separately.
