A simple and easy to use monochord for students.

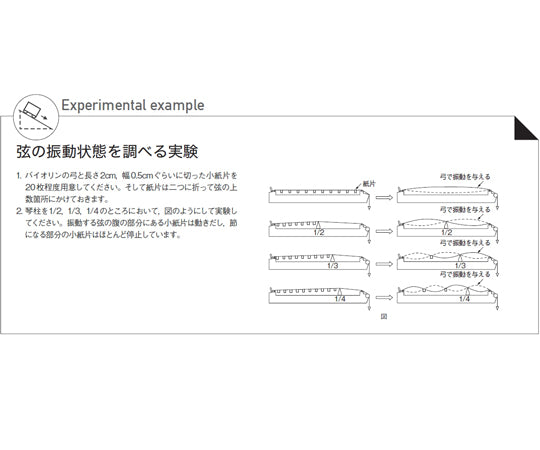

We will investigate the relationship between the thickness, tension, and length of the string and the change in sound that occurs when these are changed.
The student version of the MK-Sb allows you to adjust the two strings to equal tension, making it easy to compare and verify the characteristics of two types of strings.
The resonator box is made of wood and is designed to produce a strong sound at around 200Hz, while minimizing unwanted reverberation. Main body (wooden): W640 x D100 x H70mm with tension mechanism
Loading method: Equal tension method
Koto bridge: 2 pieces/set, small type
String length (max): 580mm
Maximum allowable tension: 60N (for φ0.5mm SUS304 wire)
Strings used: SUS hard wire φ0.5mm/0.25mm, length 0.7m, 1 of each
Product code: 130-221
