Yaboshi Fuji Royal Heavy Duty Door Roller V-Type 105mm with Frame R105V 1 pc

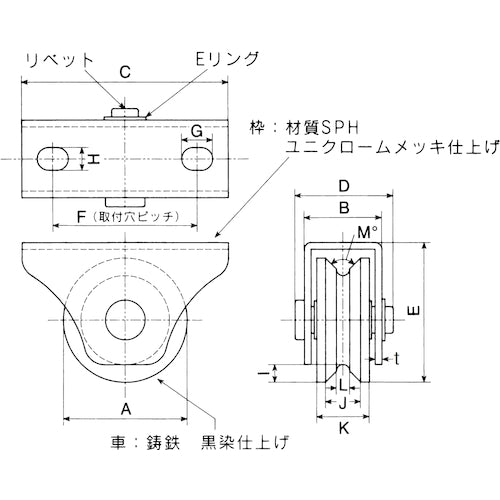

Catalogue number: R105V Features: ●This type is for use with heavy-duty iron V-shaped door rollers and angle rails. Uses: ● Heavy-duty door wheels for gates, carts, etc. Specifications: ● Allowable load (daN): 392 ● Allowable load (kgf): 400 ● Wheel diameter (mm): 105 ● Wheel width (mm): 28 ● Mounting height H (mm): 121 ● Mounting pitch X (mm): 115 ● Mounting hole diameter P (mm): 15 x 11 ● A (mm): 105 ● B (mm): 40 ● C (mm): 145 ● D (mm): 52 ● E (mm): 121 ● F (mm): 115 ● G (mm): 15 ● H (mm): 11 ● I (mm): 10.5 ● J (mm): 19 ● K (mm): 28 ● L (mm): 7.5 ● M (°): 95 ● t (mm): 3.2 ● Load capacity (kg/2 pieces): 800 Materials/Finish: ● Frame: Steel (SPH) - trivalent chromate finish ● Wheel: Cast iron - black dye finish Note: *There may be a mixture of wheels with and without grooves on the sides, but there is no difference in quality.
