Yaboshi Fuji Royal Heavy Duty Door Roller V-Type 60mm with Frame R60V 1 pc

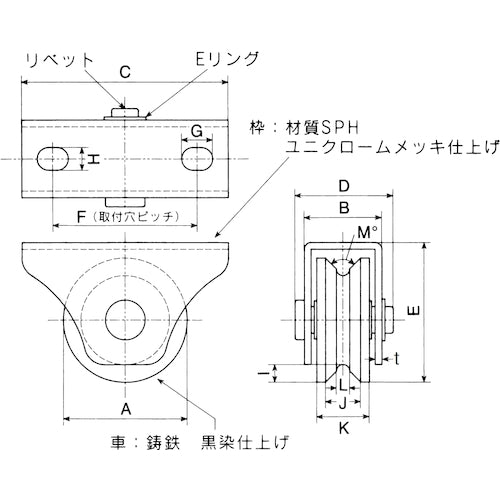

Catalogue number: R60V Features: ● Heavy-duty iron V-shaped door rollers, type for use with angle rails. Applications: ● Heavy-duty door rollers for gates, trolleys, etc. Specifications: ● Allowable load (daN): 220.5 ● Allowable load (kgf): 225 ● Wheel diameter (mm): 60 ● Wheel width (mm): 25.4 ● Mounting height H (mm): 67.3 ● Mounting pitch X (mm): 70 ● Mounting hole diameter P (mm): 15 x 11 ● A (mm): 60 ● B (mm): 37.5 ● C (mm): 100 ● D (mm): 47 ● E (mm): 67.3 ● F (mm): 70 ● G (mm): 15 ● H (mm): 11 ● I (mm): 8 ● J (mm): 17 ● K (mm): 25.4 ● L (mm): 6.5 ● M (°): 95 ● t (mm): 3.2 ● Load capacity (kg/2 pieces): 450 Material/Finish: ●Frame: Steel (SPH)/trivalent chromate finish ●Wheel: Cast iron/black dye finish Note: ●* There may be a mixture of wheels with and without grooves on the side, but there is no difference in quality.
