Yamashin Filter Line Filter DT-04 Series DT-04-A-10X-A-RC1/2 1 piece

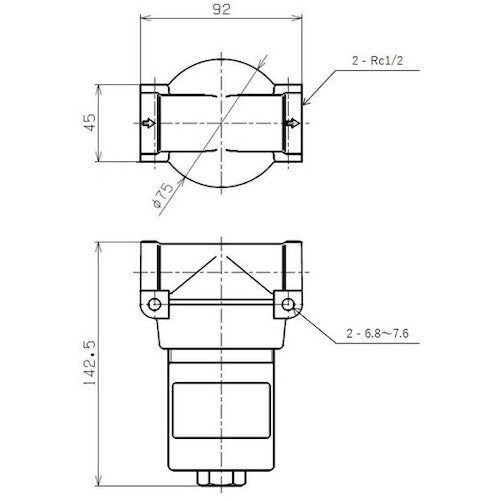

Catalog number: DT-04-A-10X-A-RC1/2 Features: ●A filter that can be installed in a hydraulic circuit with a filtration accuracy of 10 μm, and is ideal for maintaining the cleanliness of hydraulic oil in the circuit. ●The use of aluminum material makes it lightweight, compact, and space-saving. ●The piping connection port is a highly versatile RC1/2 screw specification. Applications: ●As a filter for general hydraulic oil. ●For removing dust from the circulation circuits of machine tools, industrial machinery, and hydraulic equipment for transport. Specifications: ●Caliber: Rc1/2 ●Total length (mm): 142 ●Total width (mm): 92.2 ●Standard flow rate (L/min): 20 ●Maximum operating pressure (MPa): 7.0 ●Valve set pressure (MPa): 0.10 ●Recommended flow rate: 22L/min or less ●Filtration accuracy: 10 μm ●Pipe connection diameter: Rc1/2 screw ●With relief valve ●Element replacement Material/Finish: ●Aluminum Note: ●The element is replaceable. ●Loosen the hexagonal part of the case with a wrench, remove the case, and replace the internal element.
